Section 3: Dashboards & Alerts¶
Make security actionable
You have structured logs flowing and you can query them with KQL. But nobody has time to run queries all day. This is the final step in the hidden → visible → actionable journey: dashboards for at-a-glance status, and alerts that notify you at 3 AM.

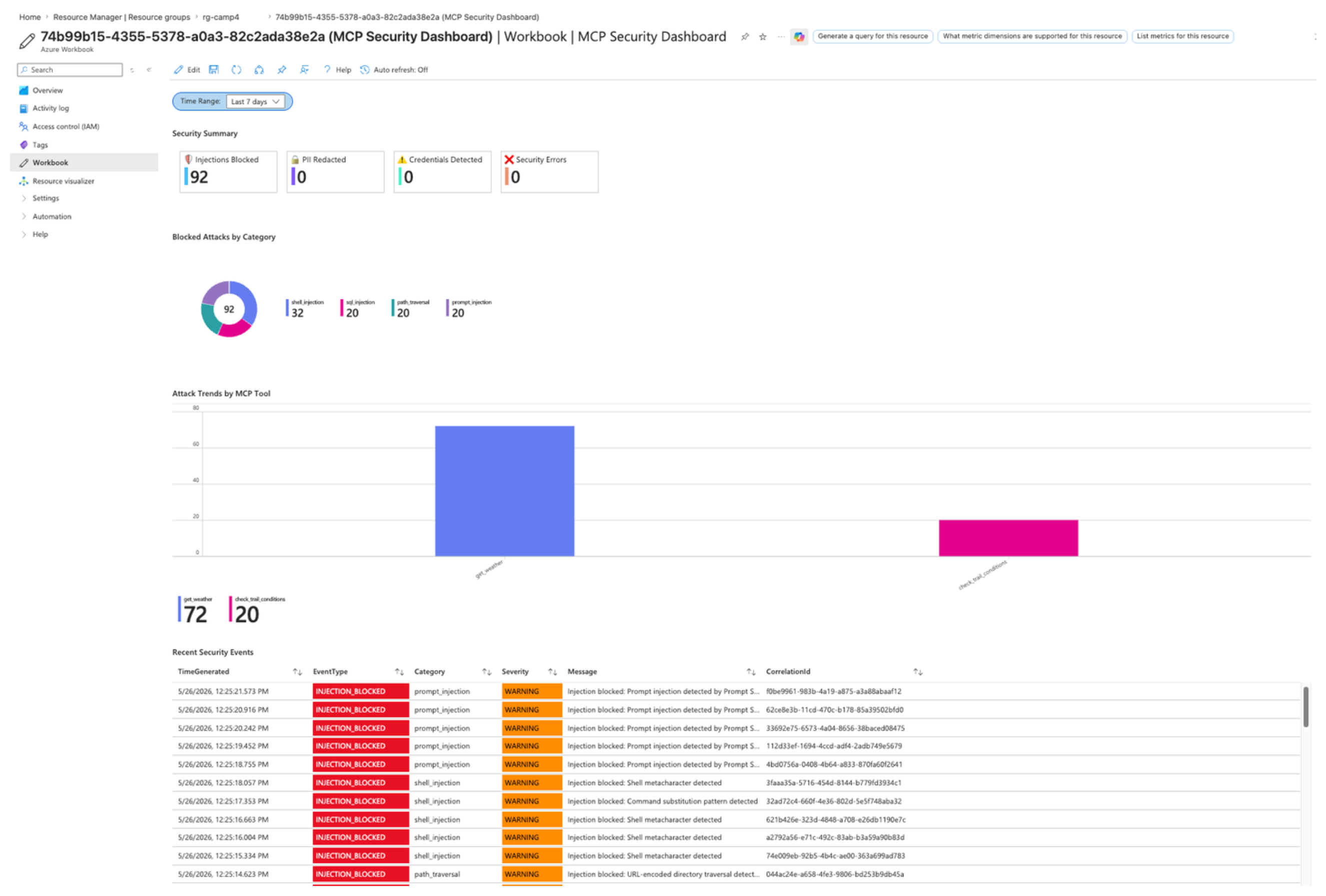

3.1 Deploy the Dashboard¶
Create Security Workbook
Deploy the Azure Monitor Workbook:
Access the dashboard:
- Open the Azure Portal
- Navigate to your Log Analytics workspace (
log-camp4-xxxxx) - Click Workbooks in the left menu
- Select MCP Security Dashboard from the list
If the dashboard appears empty
Do a hard refresh (Cmd+Shift+R or Ctrl+Shift+R) to reload the portal UI. The visualization components sometimes fail to load on first access.
Dashboard panels:
| Panel | Type | Shows |
|---|---|---|
| MCP Request Volume | Area chart | Traffic over 24h |
| Attacks by Injection Type | Pie chart | Breakdown of blocked attack categories |
| Top Targeted Tools | Bar chart | Which MCP tools attackers probe most |
| Top Error Sources | Table | IPs generating errors |
| Recent Security Events | Table | Live feed of security activity |
Workshop vs Production Dashboard
This script deploys a workshop-friendly dashboard focused on exploration. The Production Deployment deploys an optimized version with security summary scorecards, severity distribution, and alert-ready panels. The production dashboard is defined in Bicep and deployed automatically with DEPLOY_MODE=complete.
Why Workbooks?
Azure has both Workbooks and Dashboards. Workbooks are interactive, document-like reports that query live data — no ETL pipelines, no staleness. For security monitoring, they're the better choice because you need analytical depth, not just pinned tiles.
3.2 Create Alert Rules¶
Dashboards are great when you're looking at them. Alerts watch your logs continuously and notify you when something needs attention.
Set Up Automated Notifications
Create alert rules:
The script will prompt for an optional email address. You can skip this and view fired alerts in the Azure Portal instead.
What the script creates:
| Resource | Details |
|---|---|
Action Group (mcp-security-alerts) |
Notification list — email receiver if you provided one |
| Alert: High Attack Volume (Sev 2 — Warning) | Fires when >10 attacks in 5 minutes. Detects active campaigns. |
| Alert: Credential Exposure (Sev 1 — Error) | Fires on ANY credential detection. Critical security event. |
Both alerts evaluate every 5 minutes. When the KQL query returns results, the alert fires and notifies your Action Group.
What's an Action Group?
An Action Group is your incident response contact list — email, SMS, webhook, or even an Azure Function for automated remediation. For this workshop, we keep it simple with email (or none). In production, you'd add SMS for critical alerts and webhooks for Slack/Teams.
Alert Fatigue
The biggest mistake teams make is setting thresholds too low. If you get 50 alerts a day, you'll start ignoring them. Start with conservative thresholds and tune down as you learn your baseline.

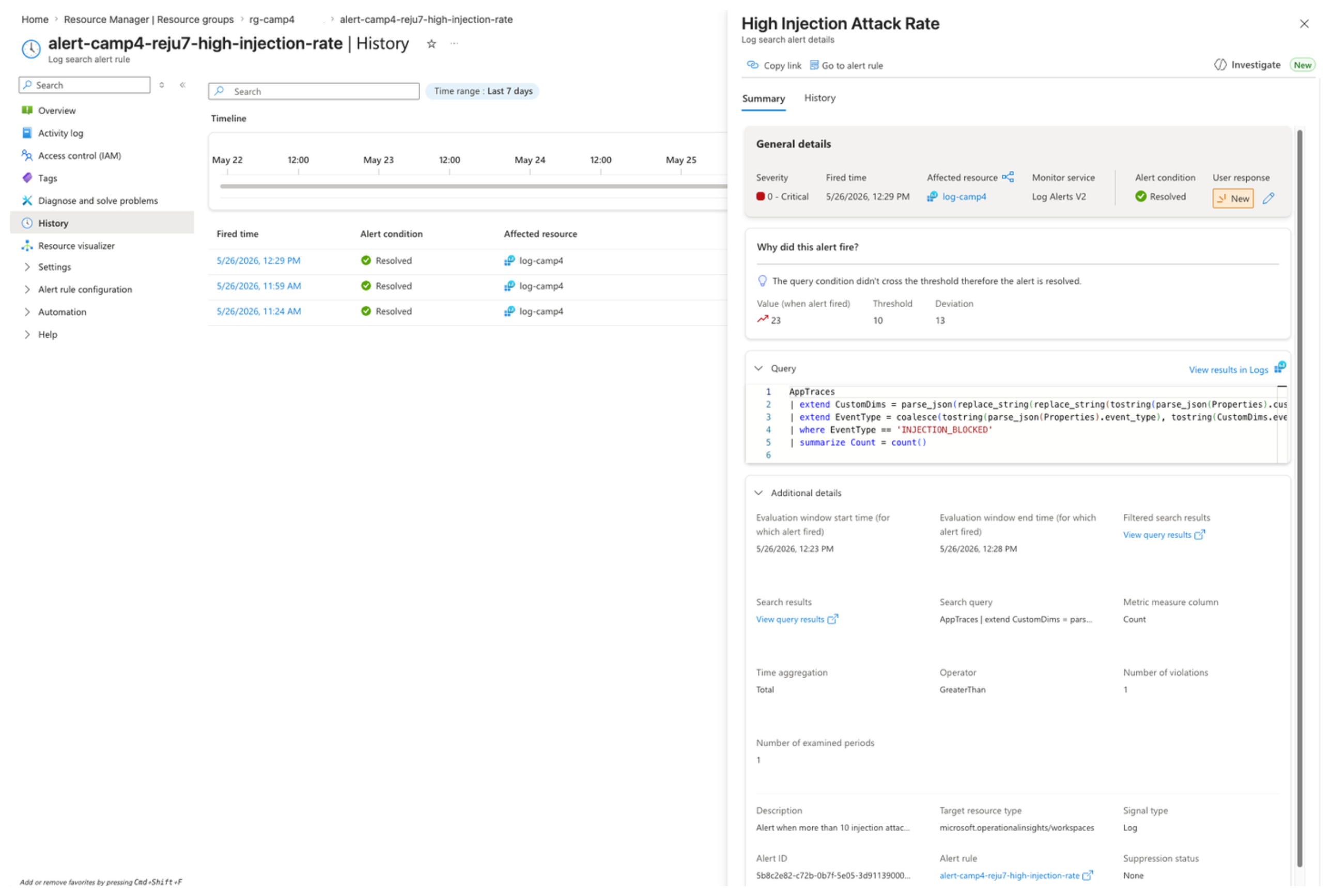

Verify in Azure Portal:
- Navigate to Monitor → Alerts
- Click Alert rules to see your configured rules
- After running the attack simulation in Section 4, wait 5-10 minutes and check for fired alerts
Dashboards and alerts are live. Time to put the whole system to the test.
