Section 1: Gateway Logging¶
Explore pre-configured diagnostics and validate logs flow
Every MCP reques, legitimate or malicious, passes through APIM. By default, APIM routes traffic but records nothing. In this workshop, the Bicep infrastructure pre-configures diagnostic settings that stream two log categories (GatewayLogs and GatewayLlmLogs) to your Log Analytics workspace, so you can query traffic immediately after azd up.
| Without Diagnostic Settings | With Diagnostic Settings (this workshop) |
|---|---|
| Traffic routes normally | Traffic routes normally |
| No record of who called, what failed, or how long it took | Every request logged with caller IP, timing, response code, correlation ID |
| Incidents are invisible | Queryable via KQL → dashboards → alerts |
1.1 Explore APIM Gateway Logging¶
Send Traffic and See Logs Flow
Run the script to send traffic through APIM and verify logging:
What this script does:
- Sends legitimate MCP requests through APIM
- Sends attack requests (SQL injection, path traversal)
- Verifies diagnostic settings are configured
- Shows sample KQL queries you can run
What you'll see:
| Component | Status |
|---|---|
| APIM routes requests | Working |
| Security function blocks attacks | Working |
| Diagnostic settings configured | Pre-deployed via Bicep |
| Logs flowing to Log Analytics | Verified |
Log Ingestion Delay
Azure Monitor has a 2-5 minute ingestion delay. The first logs from a new deployment may take 5-10 minutes to appear.
1.2 Verify Diagnostic Configuration¶
Understand What's Configured
Examine the diagnostic settings:
Shows the diagnostic settings deployed via Bicep, which log categories are enabled, and where they're sent. See the Key Log Tables below for the fields available in each table.
Verify in Azure Portal
APIM → Monitoring → Diagnostic settings → mcp-security-logs
1.3 Validate Logs Appear¶
Wait for Log Ingestion
For new deployments, logs need 2-5 minutes to appear in Log Analytics. If you run this immediately after azd up, you may see "No HTTP logs found yet." Wait a few minutes and try again.

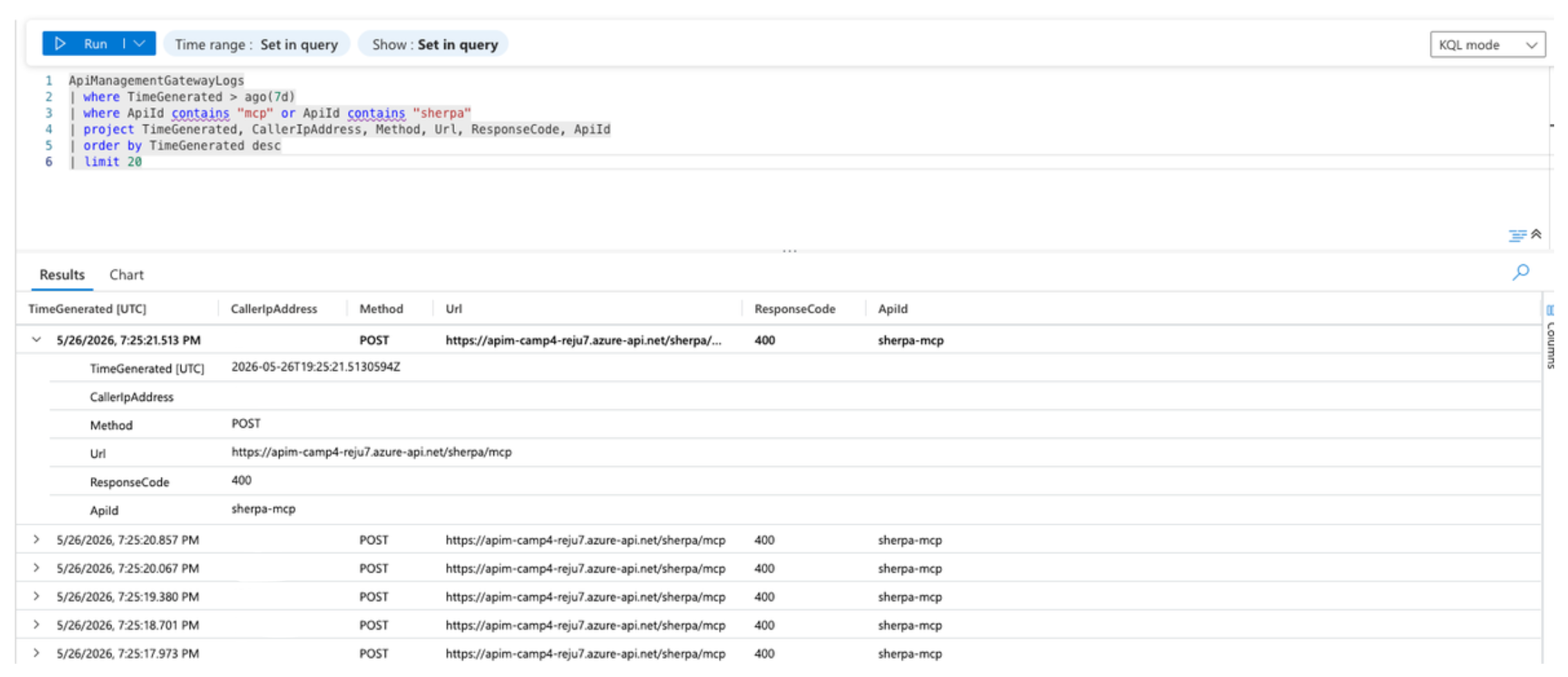

Query APIM Logs
Verify logs are flowing:
HTTP traffic query (ApiManagementGatewayLogs):
ApiManagementGatewayLogs
| where TimeGenerated > ago(1h)
| where ApiId contains "mcp" or ApiId contains "sherpa"
| project TimeGenerated, CallerIpAddress, Method, Url, ResponseCode, ApiId
| order by TimeGenerated desc
| limit 20
New to KQL?
KQL reads left-to-right with | pipes, like Unix commands. See the KQL Primer for a full introduction.
Filtering by ApiId vs Url
Using ApiId contains "mcp" is more reliable than Url contains "/mcp/" because ApiId is a structured field set during API import/configuration, while Url parsing can be fragile.
Key Log Tables¶
This section uses these Azure Monitor log tables:
| Log Table | APIM Category | Key Fields |
|---|---|---|
| ApiManagementGatewayLogs | GatewayLogs | CallerIpAddress, ResponseCode, CorrelationId, Url, Method, ApiId |
| ApiManagementGatewayLlmLog | GatewayLlmLogs | PromptTokens, CompletionTokens, ModelName, CorrelationId |
The CorrelationId field appears in both tables — you'll use it in Section 4 to trace a single request across APIM and the security function.
Logs from API Management are now flowing. But the security function's internal operations (what attacks were blocked, what PII was found) are still invisible. Let's fix that.
Next: Function Observability →
