Section 2: Enable Layer 2 Security¶

Now that you've seen the vulnerabilities, let's wire the security function into APIM and then look under the hood at how it works.

Step 1: Wire the Function to APIM¶

The security function was deployed during provisioning but isn't connected to APIM yet. Let's flip the switch. Run the enable script to wire everything together:

./scripts/1.2-enable-io-security.sh

This script connects the security function to both MCP servers in APIM. After it runs, sherpa-mcp and trail-mcp both get inbound input checking (injection detection + Prompt Shields), and outbound responses are sanitized for PII and credentials before reaching the client.

Once complete, every request and response flows through the security function:

  Client
    │
    ▼
  APIM (inbound) ──▶ /api/input-check
    │                  • Regex patterns (instant, free)
    │                  • Prompt Shields AI (if regex passes)
    │ ✓ allowed        ✗ Block unsafe requests
    ▼
  MCP Server
    │
    │ response
    ▼
  (outbound) ───────▶ /api/sanitize-output
    │                  • PII redaction (Azure AI Language)
    │ sanitized        • Credential scanning (regex)
    ▼
  Client

What the APIM Policy Looks Like

Inbound Policy (Layer 2 Input Check):

<inbound>
    <!-- Layer 1: Prompt Shields via Policy Fragment -->
    <include-fragment fragment-id="mcp-content-safety" />

    <!-- Layer 2: Advanced Input Check (NEW) -->
    <send-request mode="new" response-variable-name="inputCheck">
        <set-url>{{function-app-url}}/api/input-check</set-url>
        <set-method>POST</set-method>
        <set-body>@(context.Request.Body.As<string>())</set-body>
    </send-request>
    <choose>
        <when condition="@(!((JObject)inputCheck.Body.As<JObject>())["allowed"].Value<bool>())">
            <return-response>
                <set-status code="400" reason="Security Check Failed" />
                <set-body>@{
                    var result = inputCheck.Body.As<JObject>();
                    return new JObject(
                        new JProperty("error", "Request blocked by security filter"),
                        new JProperty("reason", result["reason"]),
                        new JProperty("category", result["category"])
                    ).ToString();
                }</set-body>
            </return-response>
        </when>
    </choose>
</inbound>

Outbound Policy (for trail-api only):

This policy is applied to trail-api (REST backend for synthesized MCP). It sanitizes PII in REST responses before APIM wraps them in SSE events:

<outbound>
    <!-- Layer 2: PII Redaction -->
    <send-request mode="new" response-variable-name="sanitized" timeout="10" ignore-error="true">
        <set-url>{{function-app-url}}/api/sanitize-output</set-url>
        <set-method>POST</set-method>
        <set-body>@(context.Response.Body.As<string>(preserveContent: true))</set-body>
    </send-request>
    <choose>
        <when condition="@(context.Variables.ContainsKey(\"sanitized\") && ((IResponse)context.Variables[\"sanitized\"]).StatusCode == 200)">
            <set-body>@(((IResponse)context.Variables["sanitized"]).Body.As<string>())</set-body>
        </when>
        <!-- On failure, pass through original (fail open) -->
    </choose>
</outbound>

sherpa-mcp uses Server-Side Sanitization

For sherpa-mcp (native MCP server), output sanitization happens inside the server, not in APIM. The get_guide_contact tool calls the sanitize-output Azure Function directly before returning data.

This approach is necessary because FastMCP's Streamable HTTP transport always uses Content-Type: text/event-stream, making APIM outbound policies unreliable.

trail-mcp has NO outbound policy

For trail-mcp (synthesized MCP), there is no outbound sanitization policy. APIM controls the SSE stream lifecycle, causing Body.As<string>() to block indefinitely.

Instead, output sanitization is applied to trail-api, which processes the REST response before APIM wraps it in SSE events.

Step 2: Under the Hood -- How the Security Function Works¶

The security function is now wired up, and you'll validate it in the next section. But if you're curious about how it actually detects attacks and redacts PII, this is the deep dive.

Function location: camps/camp3-io-security/security-function/

Input Check (`/api/input-check`)¶

The input check function uses a hybrid detection approach. Why hybrid? Because no single technique covers everything:

Approach	Strength	Weakness
Regex alone	Fast (~1ms), free	Misses creative attacks
AI alone (Prompt Shields)	Catches sophisticated semantic attacks	Costs per call, adds latency (~50ms)
Hybrid (this function)	Fast for known patterns, smart for novel ones	Best of both

The function checks regex patterns first. If no known attack patterns are found, then it calls Prompt Shields for deeper analysis.

Two-phase detection flow

# Phase 1: Fast regex check (instant, free)
result = check_patterns(text)
if not result.is_safe:
    return result  # Known attack pattern - block immediately

# Phase 2: AI-powered check (only if regex passed)
result = await check_with_prompt_shields(texts)
if not result.is_safe:
    return result  # Sophisticated attack detected by AI

Injection pattern categories

The regex patterns are organized by OWASP MCP risk category:

INJECTION_PATTERNS: dict[str, list[tuple[str, str]]] = {
    # MCP-05: Shell Injection - stops "summit; cat /etc/passwd"
    "shell_injection": [
        (r"[;&|`]", "Shell metacharacter detected"),
        (r"\$\([^)]+\)", "Command substitution pattern detected"),
        # ...
    ],

    # MCP-05: SQL Injection - stops "' OR '1'='1"
    "sql_injection": [
        (r"'\s*(OR|AND)\s+['\d]", "SQL boolean injection detected"),
        (r"UNION\s+(ALL\s+)?SELECT", "UNION-based SQL injection"),
        # ...
    ],

    # MCP-05: Path Traversal - stops "../../etc/passwd"
    "path_traversal": [
        (r"\.\./", "Directory traversal (../) detected"),
        (r"%2e%2e[%2f/\\]", "URL-encoded directory traversal"),
        # ...
    ],
}

Notice there's no prompt_injection category in the regex patterns. That's intentional! Prompt injection attacks are too creative for regex. They're handled entirely by Prompt Shields, which uses AI to understand intent, not just patterns.

Prompt Shields calls the Azure AI Content Safety API to detect jailbreak attempts:

Prompt Shields API call

# From check_with_prompt_shields() - calls the REST API
request_body = {
    "userPrompt": user_prompt,  # The text to analyze
    "documents": []              # Could include RAG context too
}
# Returns: { "userPromptAnalysis": { "attackDetected": true/false } }

The function recursively extracts all string values from the MCP request body (tool arguments, resource URIs, prompt content) and returns:

{"allowed": true} -- Safe to proceed
{"allowed": false, "reason": "...", "category": "..."} -- Block with explanation

Output Sanitization (`/api/sanitize-output`)¶

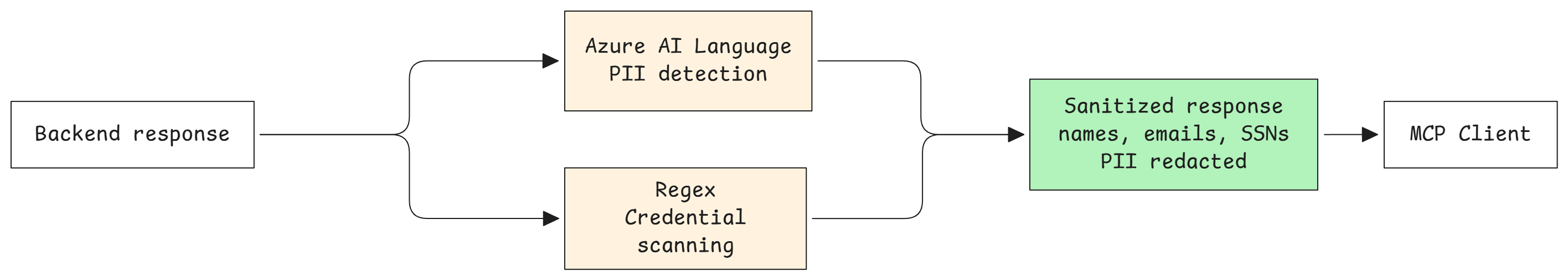

While input checking stops attacks coming in, output sanitization protects sensitive data going out. This function chains two complementary techniques:

PII Detection via Azure AI Language -- Azure AI Language uses machine learning models trained on millions of documents to recognize PII in context. It knows that "John Smith" in "Dear John Smith" is a name, but "John Smith" in "John Smith & Sons Hardware" is probably a business.

PII detection and redaction

def detect_and_redact_pii(text: str) -> PIIResult:
    """
    Calls Azure AI Language's PII detection endpoint.

    Detects: PersonName, Email, PhoneNumber, USSocialSecurityNumber,
             Address, CreditCardNumber, DateOfBirth, and 40+ more...

    Returns text with entities replaced: "John Smith" → "[REDACTED-PersonName]"
    """
    result = client.recognize_pii_entities([text])[0]

    # Redact in reverse order to preserve character positions
    for entity in sorted(result.entities, key=lambda e: e.offset, reverse=True):
        redaction = f"[REDACTED-{entity.category}]"
        text = text[:entity.offset] + redaction + text[entity.offset + entity.length:]

Credential Scanning via Regex -- AI models aren't trained to recognize API keys or connection strings. Those are arbitrary strings, so we use pattern matching for secrets:

Credential scanning patterns

def scan_and_redact(text: str) -> CredentialResult:
    """
    Pattern-based scanning for secrets that AI might miss:
    - API keys (Azure, AWS, GCP patterns)
    - Bearer tokens and JWTs
    - Connection strings with passwords
    - Private keys (RSA, SSH)
    """

The two techniques complement each other: AI finds human-readable PII, regex finds machine-generated secrets.

Explore the Full Implementation

# View the main function app
security-function/function_app.py

# View the hybrid detection logic
security-function/shared/injection_patterns.py

# View PII detection with Azure AI Language
security-function/shared/pii_detector.py

# View credential pattern scanning
security-function/shared/credential_scanner.py
