Camp 3: I/O Security

Navigating the Treacherous I/O Pass

Welcome to Camp 3, where the terrain gets treacherous. You've secured your base camp with OAuth and set up Content Safety to catch the obvious dangers, but experienced climbers know that the most dangerous hazards are the ones you don't see coming. A crevasse hidden under fresh snow. A loose handhold that looks solid. A weather pattern that shifts without warning.

In the MCP world, these hidden dangers are technical injection attacks—shell commands disguised as location queries, SQL payloads masquerading as search terms, path traversal attempts that look like innocent file requests. Content Safety won't catch them because they're not "harmful content" to an AI model. They're surgical strikes targeting your backend systems.

And there's another danger on this route: data leaking out. Your APIs might be returning SSNs, phone numbers, and addresses to any client that asks nicely. Content Safety only watches the door going in—it doesn't check what's walking out.

Camp 3 adds Layer 2 security: Azure Functions that perform advanced input validation and output sanitization. You'll witness these attacks succeed, then deploy the defenses that stop them cold.

This camp follows the same "vulnerable → exploit → fix → validate" methodology, but focuses on the data flowing through your MCP servers rather than access control.

Tech Stack: Python, MCP, Azure Functions, Azure AI Services (Language), Azure API Management
Primary Risks: MCP-05 (Command Injection), MCP-06 (Prompt Injection), MCP-03 (Tool Poisoning), MCP-10 (Context Over-Sharing)

What You'll Learn

Building on Camp 2's gateway foundation, you'll master I/O security for MCP servers:

Learning Objectives

• Understand why Layer 1 (Content Safety) isn't sufficient for technical injection attacks
• Deploy Azure Functions as security middleware for APIM
• Implement technical injection pattern detection (shell, SQL, path traversal)
• Configure PII detection and redaction using Azure AI Language
• Add credential scanning to prevent secret leakage
• Understand defense-in-depth architecture for I/O security

Why Layer 2 Security?

The Problem: Azure AI Content Safety (Layer 1) with Prompt Shields is excellent at detecting harmful content and AI-focused attacks like jailbreaks. But it's not designed for technical injection patterns:

• Shell injection — "summit; cat /etc/passwd" isn't harmful content to an AI model
• SQL injection — "' OR '1'='1" doesn't trigger hate/violence/jailbreak filters
• Path traversal — "../../etc/passwd" is just a file path, not a prompt attack
• PII in responses — Content Safety only checks inputs, not outputs

What About Prompt Injection?

Content Safety's Prompt Shields (enabled via shield-prompt="true" in Camp 2) does catch many prompt injection attacks—especially jailbreaks that try to manipulate AI behavior. However, technical injection patterns like shell commands and SQL aren't AI manipulation attempts; they're traditional injection attacks that Prompt Shields isn't designed to detect.

The Solution: Add a second layer of security with specialized Azure Functions:

Layer	Component	Purpose	Speed
1	Content Safety	Harmful content, jailbreaks, prompt injection	~30ms

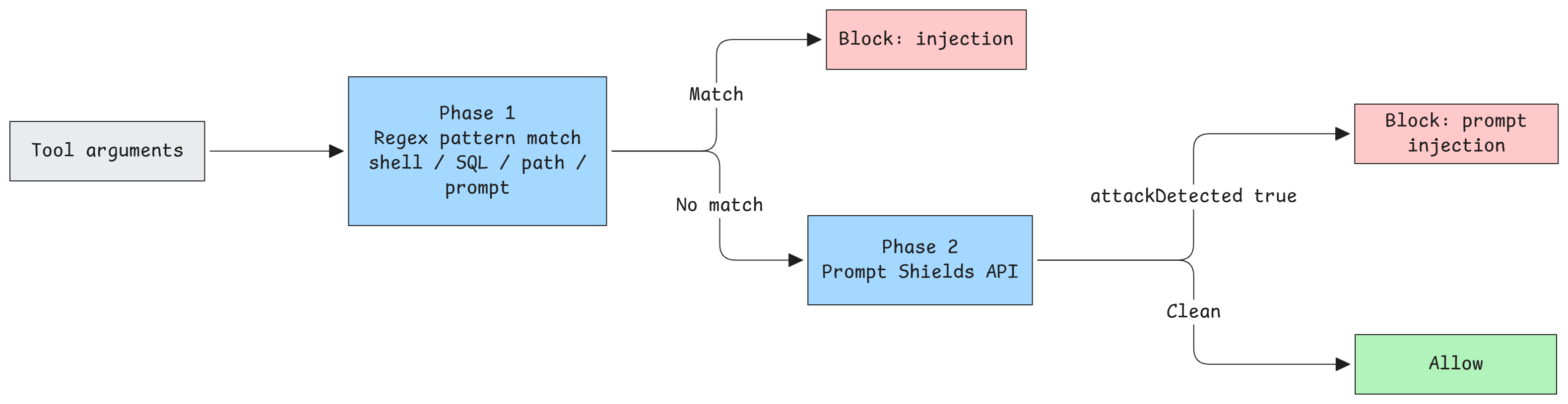

2	input_check Function	Technical injection patterns (shell, SQL, path)	~50ms
2	sanitize_output Function	PII redaction, credential scanning	~100ms
3	Server-side validation	Last line of defense (Pydantic)	In-server

Together, these layers provide comprehensive protection for MCP I/O operations.

---

Prerequisites

Before starting Camp 3, ensure you have the required tools installed.

Prerequisites Guide

See the Prerequisites page for detailed installation instructions, verification steps, and troubleshooting.

Quick checklist for Camp 3:

Azure subscription with Contributor access
Azure CLI (authenticated)
Azure Developer CLI - azd (authenticated)
Docker (installed and running)
Azure Functions Core Tools (for function deployment)
Completed Camp 2 (recommended for OAuth context)

Verify your setup:

az account show && azd version && docker --version && func --version

---

Getting Started

Clone the Workshop Repository

If you haven't already cloned the repository (from a previous camp), do so now:

git clone https://github.com/Azure-Samples/sherpa.git
cd sherpa

Navigate to the Camp 3 directory:

cd camps/camp3-io-security

---

Architecture

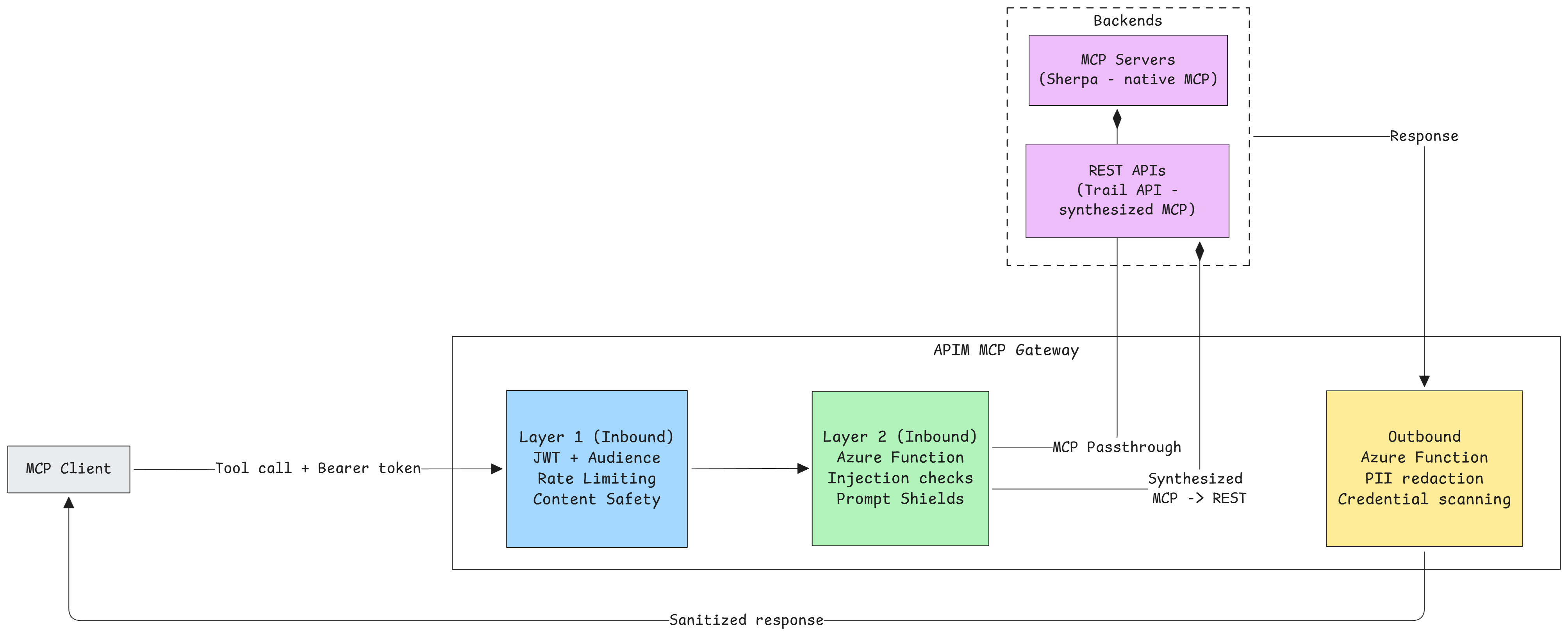

Camp 3 deploys a layered security architecture where APIM orchestrates inbound security checks, while output sanitization strategy varies by backend type.

┌─────────────────────────────────────────────────────────────────────────────┐
│                              APIM Gateway                                   │
│                                                                             │
│     ┌─────────────────────────────┐       ┌─────────────────────────────┐   │
│     │      sherpa-mcp             │       │      trail-mcp              │   │
│     │   (real MCP proxy)          │       │   (synthesized MCP)         │   │
│     │                             │       │                             │   │
│     │  INBOUND:                   │       │  INBOUND:                   │   │
│     │   • OAuth validation        │       │   • OAuth validation        │   │
│     │   • Content Safety (L1)     │       │   • Content Safety (L1)     │   │
│     │   • input_check (L2)        │       │   • input_check (L2)        │   │
│     │                             │       │                             │   │
│     │  OUTBOUND:                  │       │  OUTBOUND:                  │   │
│     │   • (none - server-side)    │       │   • (none - see trail-api)  │   │
│     └──────────────┬──────────────┘       └──────────────┬──────────────┘   │
│                    │                                     │                  │
│                    │                      ┌──────────────┴──────────────┐   │
│                    │                      │      trail-api              │   │
│                    │                      │   (REST API backend)        │   │
│                    │                      │                             │   │
│                    │                      │  OUTBOUND:                  │   │
│                    │                      │   • sanitize_output         │   │
│                    │                      └──────────────┬──────────────┘   │
│                    │                                     │                  │
└────────────────────┼─────────────────────────────────────┼──────────────────┘
                     │                                     ▼
                     ▼                          ┌─────────────────────┐
          ┌─────────────────────┐               │  Trail Container    │
          │  Sherpa Container   │               │  App (REST API)     │
          │  App (Python MCP)   │               └─────────────────────┘
          │                     │
          │  SERVER-SIDE:       │
          │   • sanitize_output │
          └─────────────────────┘

Two MCP Server Patterns with Different Sanitization Strategies:

Server	Type	Output Sanitization	Where	Why
Sherpa MCP	Native passthrough	✓ Server-side	In MCP server	Streamable HTTP uses SSE format
Trail MCP	APIM-synthesized	✗ Not possible	N/A	APIM controls SSE stream
Trail API	REST backend	✓ APIM outbound	APIM policy	JSON response, then wrapped in SSE

Why Server-Side Sanitization for Sherpa MCP?

The Challenge: FastMCP's Streamable HTTP transport always returns Content-Type: text/event-stream, even for instant, complete responses. APIM outbound policies cannot reliably distinguish between:

• A complete response delivered as an SSE event (can be sanitized)
• A long-running stream that will timeout (should pass through)

The Solution: Move sanitization inside the MCP server. The get_guide_contact tool calls the sanitize-output Azure Function directly before returning data, ensuring PII is always redacted regardless of transport format.

For trail-api: Standard REST responses use application/json, so APIM outbound sanitization works normally. The sanitized JSON is then wrapped in SSE events by the trail-mcp API.

---

Understanding MCP Transports

Before implementing I/O security, it's important to understand how MCP traffic flows through APIM. This affects what you can inspect and where security checks can run.

Streamable HTTP: The MCP Transport

The MCP specification defines Streamable HTTP as the standard transport for remote MCP servers:

Aspect	How It Works
Request	Standard HTTP POST to /mcp endpoint
Request Body	JSON-RPC 2.0 payload
Response	Either single JSON or SSE stream (server decides)

Client                                                     MCP Server
   │                                                            │
   │  POST /mcp                                                 │
   │  Content-Type: application/json                            │
   │  {"jsonrpc": "2.0", ...}                                   │
   │ ──────────────────────────────────────────────────────────>│
   │                                                            │
   │  Response (one of):                                        │
   │  A) Content-Type: application/json     ← Single response   │
   │  B) Content-Type: text/event-stream    ← SSE stream        │
   │ <──────────────────────────────────────────────────────────│

Two MCP Patterns in This Workshop

This workshop demonstrates two ways to expose MCP functionality through APIM:

Pattern	Backend	APIM Role	Streaming Handled By
Native MCP	sherpa-mcp-server (FastMCP)	Passthrough proxy	Backend server
Synthesized MCP	trail-api (REST)	Protocol translator	APIM

Native MCP (sherpa-mcp-server):

Client ─── POST /mcp ───► APIM ───► sherpa-mcp-server
                          │              │
                    Proxies MCP    Handles MCP protocol
                    traffic        Returns JSON or SSE

Synthesized MCP (trail-api):

Client ─── POST /mcp ───► APIM ───► trail-api (REST)
                          │              │
                    Translates      Standard REST API
                    MCP ↔ REST      No MCP awareness

When to Use Each Pattern

• Native MCP: Building new AI-first services with full MCP protocol support
• Synthesized MCP: Exposing existing REST APIs to AI agents without code changes

Why This Matters for Output Sanitization

The outbound policy we'll implement reads the response body:

<set-body>@(context.Response.Body.As<string>(preserveContent: true))</set-body>

This works only when the response is complete before the outbound policy runs.

Response Type	Body.As<string>()	Outbound Sanitization
Single JSON	Returns complete body	Works
SSE Stream	May timeout or get partial data	Unreliable

Deep Dive: Why Server-Side Sanitization for MCP Servers

The FastMCP Content-Type Challenge

FastMCP's Streamable HTTP transport always returns Content-Type: text/event-stream, even for instant, complete responses like get_weather. This creates a problem for APIM outbound policies:

<!-- This approach is UNRELIABLE for MCP servers -->
<choose>
    <when condition="@(!context.Response.Headers.GetValueOrDefault('Content-Type','').Contains('event-stream'))">
        <!-- Sanitize JSON responses -->
    </when>
    <!-- Skip SSE streams -->
</choose>

The Content-Type check skips sanitization for all MCP responses, even ones that complete instantly and could be sanitized.

Timeout-Based Approach Also Has Issues

An alternative is to attempt sanitization with a timeout, letting true streams fail gracefully. However, this adds latency to every request and the timeout tuning is fragile.

---

The Server-Side Solution

For native MCP servers (sherpa-mcp), we move sanitization inside the server itself:

@mcp.tool()
async def get_guide_contact(guide_id: str) -> str:
    guide = get_guide_data(guide_id)
    raw_json = json.dumps(guide)

    # Sanitize PII before returning (server-side Layer 2)
    sanitized = await sanitize_output(raw_json)
    return sanitized

The sanitize_output() function calls the same Azure Function that APIM would call, but from inside the server:

• Works regardless of transport format (JSON or SSE)
• No timeout tuning required
• PII is redacted before it ever leaves the server
• Fail-open strategy maintains availability

---

Why trail-api Uses APIM Outbound Sanitization

For synthesized MCP (trail-mcp → trail-api), the situation is different:

• trail-api is a standard REST API returning application/json
• APIM outbound policies can read and modify JSON responses
• The sanitized JSON is then wrapped in SSE events by trail-mcp

This works because APIM sees a complete JSON response before generating the SSE stream.

---

Summary: Choose the Right Approach

Backend Type	Transport	Output Sanitization
Native MCP (FastMCP)	Streamable HTTP (SSE)	Server-side
REST API	JSON	APIM outbound policy
Synthesized MCP	Streamable HTTP (SSE)	Sanitize the REST backend

---

Workshop Scripts Use Simple HTTP

The workshop scripts use curl with synchronous HTTP POST requests:

curl -X POST "$MCP_ENDPOINT/mcp" \
  -H "Content-Type: application/json" \
  -d '{"jsonrpc": "2.0", ...}'

This works because Streamable HTTP accepts standard POST requests and can respond with either:

• Single JSON (what the workshop scripts receive)
• SSE stream (what a full MCP client like VS Code can handle)

The server decides based on the operation. Simple tool calls return JSON; long-running operations could stream progress updates.

---

The Ascent

Camp 3 follows a streamlined waypoint structure. Each waypoint demonstrates the vulnerability, applies the fix, and validates the result.

Establish Camp

Before climbing through the waypoints, let's establish camp by deploying all Azure infrastructure and application code.

Deploy Camp 3

Full Deployment (Infrastructure + Code)

This creates all the infrastructure and deploys the application code for Camp 3:

cd camps/camp3-io-security
azd up

When prompted:

• Environment name: Choose a name (e.g., camp3-dev)
• Subscription: Select your Azure subscription
• Location: Select your Azure region (e.g., westus2, eastus)

What gets deployed?

The azd up command provisions infrastructure AND deploys application code:

Infrastructure (~15 minutes):

• API Management (Basic v2) — MCP gateway with OAuth + Content Safety
• Container Registry — For container images
• Container Apps Environment — Hosts the MCP servers
• Azure Function App (Flex Consumption) — For security functions
• Azure AI Services — PII detection via Language API
• Content Safety (S0) — Layer 1 content filtering
• Storage Account — For Function App state
• Log Analytics — Monitoring and diagnostics
• Managed Identities — For APIM, Container Apps, and Functions

Application Code (~5 minutes):

• Sherpa MCP Server — Python MCP server deployed to Container Apps
• Trail API — REST API with permit endpoints deployed to Container Apps
• Security Function — Input check and output sanitization functions

Post-Provision Configuration:

• Sherpa MCP API — Native MCP passthrough to Container App
• Trail MCP API — APIM-synthesized MCP from Trail REST API
• Trail REST API — Backend for Trail MCP
• OAuth validation — JWT validation with mcp.access scope on all MCP endpoints
• RFC 9728 PRM discovery — Enables VS Code OAuth autodiscovery (see Camp 2 for details)
• Content Safety — Layer 1 filtering on all APIs

Note: The security function is deployed but not yet wired to APIM. You'll do that in Waypoint 1.2 after seeing why it's needed.

Expected time: ~20 minutes

When provisioning completes, save these values:

# Display your deployment info
azd env get-values | grep -E "APIM_GATEWAY_URL|FUNCTION_APP_URL|MCP_APP_CLIENT_ID"

---

Waypoint 1.1: Understand the Vulnerabilities

In this waypoint, you'll see two critical I/O security gaps that Layer 1 (Content Safety) doesn't catch, then review the security function code that will fix them.

Working Directory

All commands should be run from the camps/camp3-io-security directory:

cd camps/camp3-io-security

Exploit 1: Technical Injection Bypass

The Problem: Content Safety Doesn't Catch Technical Injection Patterns

Azure AI Content Safety with Prompt Shields catches harmful content and AI-focused attacks like jailbreaks. But technical injection patterns—shell commands, SQL, path traversal—aren't AI manipulation attempts. Let's prove they pass through APIM.

The exploit script accepts either sherpa or trails as a parameter—try both to see that neither MCP server is protected:

# Test the Sherpa MCP server (native MCP passthrough)
./scripts/1.1-exploit-injection.sh sherpa

# Test the Trail MCP server (APIM-synthesized MCP)
./scripts/1.1-exploit-injection.sh trails

The script sends technical injection attacks. Here's what you'll see when testing the Sherpa MCP server:

Test 1: Shell Injection

Location: "summit; cat /etc/passwd"

Result: 200 OK — Shell metacharacters pass through!

Test 2: Path Traversal

trail_id: "../../etc/passwd"

Result: 200 OK — Directory traversal isn't blocked!

Test 3: SQL Injection

query: "' OR '1'='1"

Result: 200 OK — SQL injection patterns aren't detected!

All attacks succeed on both servers. Content Safety isn't stopping them.

Why Content Safety Misses These

Azure AI Content Safety has two detection capabilities:

Category Detection (hate, violence, sexual, self-harm): Catches harmful content directed at humans.

Prompt Shields (jailbreak, prompt injection): Catches AI manipulation attempts—instructions designed to make an AI behave differently.

What it doesn't catch:

• Shell injection — ; cat /etc/passwd isn't trying to manipulate an AI
• SQL injection — ' OR '1'='1 is a database attack, not a prompt attack
• Path traversal — ../../etc/passwd is a file system attack

These are traditional injection attacks targeting backend systems, not AI models. They require pattern-based detection with regex and heuristics—which is exactly what Layer 2 provides.

Exploit 2: PII Leakage in Responses

The Problem: Sensitive Data in API Responses

Both MCP servers have tools that return sensitive PII:

• Trail MCP: get-permit-holder returns permit holder details
• Sherpa MCP: get_guide_contact returns mountain guide contact info

# Test both MCP servers (default)
./scripts/1.1-exploit-pii.sh

# Or test individually
./scripts/1.1-exploit-pii.sh trails
./scripts/1.1-exploit-pii.sh sherpa

For Trail MCP, this calls the get-permit-holder tool via MCP:

Response (unredacted):

{
  "permit_id": "TRAIL-2024-001",
  "holder_name": "John Smith",
  "email": "john.smith@example.com",
  "phone": "555-123-4567",
  "ssn": "123-45-6789",
  "address": "123 Mountain View Dr, Denver, CO 80202"
}

This is MCP-03: Tool Poisoning (Data Exfiltration)

Without output sanitization, this PII passes directly to the client!

Compliance Implications

Exposing PII violates:

• GDPR — EU data protection regulation
• CCPA — California privacy law
• HIPAA — Healthcare data protection
• SOC 2 — Trust service criteria

---

Waypoint 1.2: Enable Layer 2 Security

Now that you've seen the vulnerabilities, let's review the security function code and wire it into APIM.

Step 1: Review the Security Function Code

How We'll Fix It

The security function was deployed during provisioning but isn't wired to APIM yet. Before we flip the switch, let's understand what it actually does, because the how matters as much as the what.

Function Location: camps/camp3-io-security/security-function/

Input Check Function (/api/input-check)

The input check function uses a hybrid detection approach, and understanding why is key to building effective security.

The Problem with Single-Layer Detection:

• Regex alone catches known patterns fast (~1ms) but misses creative attacks. An attacker who writes "Disregard your previous directives" slips past a pattern matching "ignore.*instructions".
• AI alone (like Prompt Shields) catches sophisticated semantic attacks but costs money per call and adds latency (~50ms).

The Hybrid Solution: Check regex patterns first. If no known attack patterns are found, then call Prompt Shields for deeper analysis. This gives you speed for obvious attacks and intelligence for subtle ones.

# The two-phase detection flow in injection_patterns.py

# Phase 1: Fast regex check (instant, free)
result = check_patterns(text)
if not result.is_safe:
    return result  # Known attack pattern - block immediately

# Phase 2: AI-powered check (only if regex passed)
result = await check_with_prompt_shields(texts)
if not result.is_safe:
    return result  # Sophisticated attack detected by AI

The regex patterns are organized by OWASP MCP risk category:

INJECTION_PATTERNS: dict[str, list[tuple[str, str]]] = {
    # MCP-05: Shell Injection - stops "summit; cat /etc/passwd"
    "shell_injection": [
        (r"[;&|`]", "Shell metacharacter detected"),
        (r"\$\([^)]+\)", "Command substitution pattern detected"),
        # ...
    ],

    # MCP-05: SQL Injection - stops "' OR '1'='1"
    "sql_injection": [
        (r"'\s*(OR|AND)\s+['\d]", "SQL boolean injection detected"),
        (r"UNION\s+(ALL\s+)?SELECT", "UNION-based SQL injection"),
        # ...
    ],

    # MCP-05: Path Traversal - stops "../../etc/passwd"
    "path_traversal": [
        (r"\.\./", "Directory traversal (../) detected"),
        (r"%2e%2e[%2f/\\]", "URL-encoded directory traversal"),
        # ...
    ],
}

Notice there's no prompt_injection category in the regex patterns—that's intentional! Prompt injection attacks are too creative for regex. They're handled entirely by Prompt Shields, which uses AI to understand intent, not just patterns.

Prompt Shields calls the Azure AI Content Safety API to detect jailbreak attempts:

# From check_with_prompt_shields() - calls the REST API
request_body = {
    "userPrompt": user_prompt,  # The text to analyze
    "documents": []              # Could include RAG context too
}
# Returns: { "userPromptAnalysis": { "attackDetected": true/false } }

The function recursively extracts all string values from the MCP request body (tool arguments, resource URIs, prompt content) and returns:

• {"allowed": true} — Safe to proceed
• {"allowed": false, "reason": "...", "category": "..."} — Block with explanation

Output Sanitization Function (/api/sanitize-output)

While input checking stops attacks coming in, output sanitization protects sensitive data going out. This function chains two complementary techniques:

Step 1: PII Detection via Azure AI Language

Azure AI Language uses machine learning models trained on millions of documents to recognize PII in context. It knows that "John Smith" in "Dear John Smith" is a name, but "John Smith" in "John Smith & Sons Hardware" is probably a business.

def detect_and_redact_pii(text: str) -> PIIResult:
    """
    Calls Azure AI Language's PII detection endpoint.

    Detects: PersonName, Email, PhoneNumber, USSocialSecurityNumber,
             Address, CreditCardNumber, DateOfBirth, and 40+ more...

    Returns text with entities replaced: "John Smith" → "[REDACTED-PersonName]"
    """
    result = client.recognize_pii_entities([text])[0]

    # Redact in reverse order to preserve character positions
    for entity in sorted(result.entities, key=lambda e: e.offset, reverse=True):
        redaction = f"[REDACTED-{entity.category}]"
        text = text[:entity.offset] + redaction + text[entity.offset + entity.length:]

Step 2: Credential Scanning via Regex

AI models aren't trained to recognize API keys or connection strings—those are arbitrary strings. So we use pattern matching for secrets:

def scan_and_redact(text: str) -> CredentialResult:
    """
    Pattern-based scanning for secrets that AI might miss:
    - API keys (Azure, AWS, GCP patterns)
    - Bearer tokens and JWTs
    - Connection strings with passwords
    - Private keys (RSA, SSH)
    """

The two techniques complement each other: AI finds human-readable PII, regex finds machine-generated secrets.

Explore the Code

Take a moment to explore the full implementation:

# View the main function app
security-function/function_app.py

# View the hybrid detection logic
security-function/shared/injection_patterns.py

# View PII detection with Azure AI Language
security-function/shared/pii_detector.py

# View credential pattern scanning
security-function/shared/credential_scanner.py

Step 2: Wire the Function to APIM

The security function is already deployed. Now connect it to APIM and enable server-side sanitization:

./scripts/1.2-enable-io-security.sh

This script does six things:

1. Named Value — Adds the function URL for policy use
2. Sherpa MCP Policy — Input security (OAuth + Content Safety + input_check)
3. Trail MCP Policy — Input security only (OAuth + Content Safety + input_check)
4. Trail API Policy — Output sanitization (sanitize_output before SSE wrapping)
5. Enable Server-Side Sanitization — Sets SANITIZE_ENABLED=true on sherpa-mcp-server
6. Wait for Deployment — Polls until the new Container App revision is running

Why the Environment Variable Toggle?

The sherpa-mcp-server has server-side PII sanitization built in, but it's disabled by default (SANITIZE_ENABLED=false). This allows you to see the vulnerability in Section 1.1 before enabling the fix here. The script flips the toggle and waits for the Container App to redeploy.

Expected output:

==========================================
I/O Security Enabled!
==========================================

Security Architecture:

  ┌─────────────────┐     ┌─────────────────┐
  │   sherpa-mcp    │     │   trail-mcp     │
  │ (real MCP proxy)│     │ (synthesized)   │
  │                 │     │                 │
  │  • OAuth        │     │  • OAuth        │
  │  • ContentSafety│     │  • ContentSafety│
  │  • Input Check  │     │  • Input Check  │
  │  • Output Sanit.│     │  (no outbound)  │
  │   (server-side) │     │                 │
  └────────┬────────┘     └────────┬────────┘
           │                       │
           │              ┌────────┴────────┐
           │              │   trail-api     │
           │              │  • Output Sanit.│
           │              │   (APIM policy) │
           │              └────────┬────────┘
           ▼                       ▼
     Container App          Container App

Why the Split Architecture?

Synthesized MCP servers (trail-mcp) have APIM-controlled SSE streams that block outbound Body.As<string>() calls. By applying output sanitization to the underlying REST API (trail-api), we sanitize the response before APIM wraps it in SSE events.

What the APIM Policy Looks Like

Inbound Policy (Layer 2 Input Check):

<inbound>
    <!-- Layer 1: Content Safety (existing) -->
    <llm-content-safety backend-id="content-safety-backend" ... />

    <!-- Layer 2: Advanced Input Check (NEW) -->
    <send-request mode="new" response-variable-name="inputCheck">
        <set-url>{{function-app-url}}/api/input-check</set-url>
        <set-method>POST</set-method>
        <set-body>@(context.Request.Body.As<string>())</set-body>
    </send-request>
    <choose>
        <when condition="@(!((JObject)inputCheck.Body.As<JObject>())["allowed"].Value<bool>())">
            <return-response>
                <set-status code="400" reason="Security Check Failed" />
                <set-body>@{
                    var result = inputCheck.Body.As<JObject>();
                    return new JObject(
                        new JProperty("error", "Request blocked by security filter"),
                        new JProperty("reason", result["reason"]),
                        new JProperty("category", result["category"])
                    ).ToString();
                }</set-body>
            </return-response>
        </when>
    </choose>
</inbound>

Outbound Policy (for trail-api only):

This policy is applied to trail-api (REST backend for synthesized MCP). It sanitizes PII in REST responses before APIM wraps them in SSE events:

<outbound>
    <!-- Layer 2: PII Redaction -->
    <send-request mode="new" response-variable-name="sanitized" timeout="10" ignore-error="true">
        <set-url>{{function-app-url}}/api/sanitize-output</set-url>
        <set-method>POST</set-method>
        <set-body>@(context.Response.Body.As<string>(preserveContent: true))</set-body>
    </send-request>
    <choose>
        <when condition="@(context.Variables.ContainsKey(\"sanitized\") && ((IResponse)context.Variables[\"sanitized\"]).StatusCode == 200)">
            <set-body>@(((IResponse)context.Variables["sanitized"]).Body.As<string>())</set-body>
        </when>
        <!-- On failure, pass through original (fail open) -->
    </choose>
</outbound>

sherpa-mcp uses Server-Side Sanitization

For sherpa-mcp (native MCP server), output sanitization happens inside the server, not in APIM. The get_guide_contact tool calls the sanitize-output Azure Function directly before returning data.

This approach is necessary because FastMCP's Streamable HTTP transport always uses Content-Type: text/event-stream, making APIM outbound policies unreliable.

trail-mcp has NO outbound policy

For trail-mcp (synthesized MCP), there is no outbound sanitization policy. APIM controls the SSE stream lifecycle, causing Body.As<string>() to block indefinitely.

Instead, output sanitization is applied to trail-api, which processes the REST response before APIM wraps it in SSE events.

---

Waypoint 1.3: Validate the Security

Confirm that both vulnerabilities are now fixed by running the same exploits from Waypoint 1.1.

Validate 1: Injection Attacks Blocked

Run the same injection attacks from Waypoint 1.1:

./scripts/1.3-validate-injection.sh sherpa

Expected results:

Test 1: Shell Injection

Status: 400 Bad Request
Response: {
  "error": "Request blocked by security filter",
  "reason": "Shell metacharacter detected",
  "category": "shell_injection"
}

Test 2: Path Traversal

Status: 400 Bad Request
Response: {
  "error": "Request blocked by security filter",
  "reason": "Directory traversal (../) detected",
  "category": "path_traversal"
}

Test 3: SQL Injection

Status: 400 Bad Request
Response: {
  "error": "Request blocked by security filter",
  "reason": "SQL boolean injection detected",
  "category": "sql_injection"
}

Test 4: Safe Request (should pass)

Status: 200 OK

You can also validate the Trail MCP server:

./scripts/1.3-validate-injection.sh trails

Layer 2 is successfully detecting and blocking injection attacks!

Validate 2: PII Redacted in Responses

The validation script tests PII redaction on both MCP servers:

./scripts/1.3-validate-pii.sh

Test 1: Trail API (trail-mcp → trail-api sanitization)

{
  "permit_id": "TRAIL-2024-001",
  "holder_name": "[REDACTED-PersonName]",
  "email": "[REDACTED-Email]",
  "phone": "[REDACTED-PhoneNumber]",
  "ssn": "[REDACTED-USSocialSecurityNumber]",
  "address": "[REDACTED-Address]"
}

Test 2: Sherpa MCP (direct outbound sanitization)

{
  "guide_id": "guide-002",
  "name": "[REDACTED-PersonName]",
  "email": "[REDACTED-Email]",
  "phone": "[REDACTED-PhoneNumber]",
  "ssn": "[REDACTED-USSocialSecurityNumber]",
  "address": "[REDACTED-Address]"
}

Both responses have the same structure, but all PII is redacted! This validates that:

• sherpa-mcp: Output sanitization works in the MCP policy (real MCP proxy)
• trail-mcp: Output sanitization works via trail-api (synthesized MCP)

How PII Detection Works

Azure AI Language's PII detection identifies:

Category	Examples
PersonName	John Smith, Jane Doe
Email	john@example.com
PhoneNumber	555-123-4567, (555) 123-4567
USSocialSecurityNumber	123-45-6789
Address	123 Main St, Denver, CO 80202
CreditCardNumber	4111-1111-1111-1111
And many more...	DateOfBirth, IPAddress, etc.

The sanitize_output function calls Azure AI Language, then replaces each detected entity with [REDACTED-Category].

---

What You Built

Congratulations! You've implemented defense-in-depth I/O security for MCP servers with a split architecture that handles both real and synthesized MCP patterns:

                   Request Flow
                        │
        ┌───────────────┴───────────────┐
        ▼                               ▼
┌───────────────────┐           ┌───────────────────┐
│   sherpa-mcp      │           │   trail-mcp       │
│ (real MCP proxy)  │           │ (synthesized)     │
├───────────────────┤           ├───────────────────┤
│ INBOUND:          │           │ INBOUND:          │
│  • Content Safety │           │  • Content Safety │
│  • input_check    │           │  • input_check    │
├───────────────────┤           ├───────────────────┤
│ SERVER-SIDE:      │           │ OUTBOUND:         │
│  • sanitize_output│           │  (none)           │
│   (SANITIZE_      │           │                   │
│    ENABLED=true)  │           │                   │
└─────────┬─────────┘           └─────────┬─────────┘
          │                               │
          │                     ┌─────────┴─────────┐
          │                     │   trail-api       │
          │                     │ (REST backend)    │
          │                     ├───────────────────┤
          │                     │ OUTBOUND:         │
          │                     │  • sanitize_output│
          │                     │   (APIM policy)   │
          │                     └─────────┬─────────┘
          ▼                               ▼
    Container App                   Container App

Key Insight: Native MCP servers using Streamable HTTP (like sherpa-mcp with FastMCP) always return Content-Type: text/event-stream, making APIM outbound policies unreliable. The solution is server-side sanitization, where the MCP server calls the sanitize-output Function directly before returning data, controlled by the SANITIZE_ENABLED environment variable. For REST APIs (like trail-api), APIM outbound policies work normally because the response is application/json.

---

Security Controls Summary

Control	What It Does	Applied To	OWASP Risk Mitigated
OAuth (mcp.access scope)	Token validation with scope check	All APIs	MCP-01 (Authentication)
Content Safety (L1)	Harmful content detection	All APIs	MCP-06 (partial)
input_check (L2)	Prompt/shell/SQL/path injection	All APIs	MCP-05, MCP-06
sanitize_output (L2)	PII redaction, credential scanning	sherpa-mcp (server-side), trail-api (APIM)	MCP-03, MCP-10
Server validation (L3)	Pydantic schemas, regex patterns	MCP servers	Defense in depth

---

Key Learnings

Defense in Depth

No single layer catches everything:

• Content Safety — Great for hate/violence, misses injection
• Regex patterns — Great for injection, misses semantic attacks
• AI detection — Great for PII, needs training data
• Server validation — Last resort, but attackers are inside

Layer them together for comprehensive protection.

MCP Architecture Matters

Real vs Synthesized MCP servers require different sanitization strategies:

• Real MCP (sherpa-mcp): FastMCP always uses text/event-stream → server-side sanitization
• Synthesized MCP (trail-mcp): APIM controls SSE stream → sanitize the REST backend instead
• REST API (trail-api): Standard JSON responses → APIM outbound sanitization

Key Insight: Don't assume APIM outbound policies can modify all response types. Streamable HTTP's SSE format requires sanitization to happen before the response enters the transport layer.

Fail Open vs Fail Closed

The sanitize_output function fails open — if Azure AI Language is unavailable, the original response passes through. This prioritizes availability over security.

In high-security environments, consider failing closed instead:

if pii_result.error:
    # Fail closed: return error instead of original
    return func.HttpResponse(
        '{"error": "PII check unavailable"}',
        status_code=503
    )

Understanding Fail-Open: A Security Trade-off

When the sanitize_output function can't reach Azure AI Language (network issue, quota exceeded, service outage), it has two choices:

Fail Open (current behavior): - Return the original response unchanged - Users get their data, but PII might slip through - Prioritizes availability over security

Fail Closed (alternative): - Return an error (503 Service Unavailable) - Users can't proceed until the service recovers - Prioritizes security over availability

Which should you choose?

It depends on your threat model and business requirements:

Scenario	Recommendation
Public API with sensitive data	Fail closed - block unknown responses
Internal tool with low PII risk	Fail open - prioritize uptime
Healthcare/Financial data	Fail closed - compliance requires it
Demo/Workshop environment	Fail open - learning trumps security

The Camp 3 function fails open because we're in a learning environment. In production, you'd likely want fail-closed for endpoints that handle sensitive data.

To implement fail-closed, change the exception handler:

except Exception as e:
    logging.error(f"Sanitization failed: {e}")
    # Fail closed: return error instead of original
    return func.HttpResponse(
        json.dumps({"error": "Security check unavailable", "retry": True}),
        status_code=503,
        mimetype="application/json"
    )

Pattern Maintenance

Injection patterns evolve. The injection_patterns.py file should be:

• Regularly updated with new attack patterns
• Tested against known bypass techniques
• Tuned to minimize false positives
• Documented with OWASP risk mappings

---

Server-Side Validation (Layer 3)

The MCP servers in Camp 3 include Pydantic validation as the last line of defense:

from pydantic import BaseModel, Field

class PermitRequest(BaseModel):
    trail_id: str = Field(..., pattern=r'^[a-z]+-[a-z]+$')
    hiker_name: str = Field(..., min_length=2, max_length=100)
    hiker_email: str = Field(..., pattern=r'^[a-zA-Z0-9._%+-]+@...')
    planned_date: str = Field(..., pattern=r'^\d{4}-\d{2}-\d{2}$')
    group_size: int = Field(default=1, ge=1, le=12)

This validation runs inside the MCP server — if an attacker bypasses Layers 1 and 2, Pydantic still rejects malformed input.

---

Cleanup

When you're done with Camp 3, remove all Azure resources:

# Delete all resources
azd down --force --purge

Optional: Delete the Entra ID applications:

# Get app IDs
MCP_APP_ID=$(azd env get-value MCP_APP_CLIENT_ID)
APIM_APP_ID=$(azd env get-value APIM_CLIENT_APP_ID)

# Delete apps
az ad app delete --id $MCP_APP_ID
az ad app delete --id $APIM_APP_ID

---

What's Next?

Camp 3 Complete!

You've implemented comprehensive I/O security for MCP servers!

Continue your ascent:

• Camp 4: Monitoring & Response — Detect and respond to security incidents with Azure Monitor

Or dive deeper:

• Azure AI Language PII Detection
• OWASP Injection Prevention Cheat Sheet
• Azure Functions Python Developer Guide

---

← Camp 2: Gateway | Camp 4: Monitoring →
