Base Camp: Understanding the Mountain¶

Know Your Terrain Before You Climb

Welcome to Base Camp, the foundation of your MCP security journey. Before we ascend to the higher camps where we'll tackle production-grade security patterns, we need to establish a solid foundation. Just as mountaineers acclimatize at base camp before attempting the summit, you'll start here by understanding what MCP is, why it needs security, and experiencing firsthand what happens when security is absent.

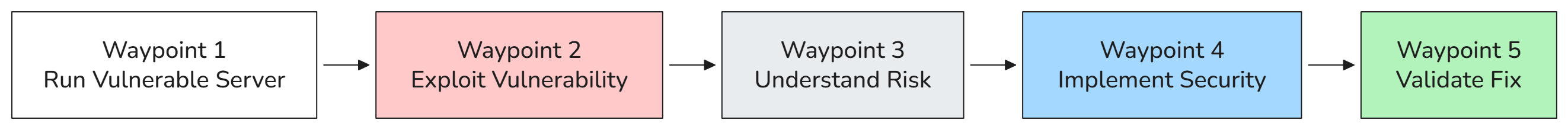

This camp introduces you to the "vulnerable → exploit → fix → validate" methodology that you'll use throughout the entire workshop series. You'll run an intentionally vulnerable MCP server, exploit it to see the real-world impact, implement a basic security fix, and validate that the fix works. By the end of Base Camp, you'll have hands-on experience with MCP security fundamentals and be ready for the advanced patterns in the camps ahead.

Tech Stack: Python, FastMCP, VS Code
Primary Risks: MCP01 (Token Mismanagement & Secret Exposure), MCP07 (Insufficient Authentication & Authorization)

What is the Model Context Protocol (MCP)?¶

The Model Context Protocol (MCP) is an open standard for connecting AI applications to data sources and tools. It provides a common communication protocol so any AI system can work with any data source, without requiring custom integrations for each combination.

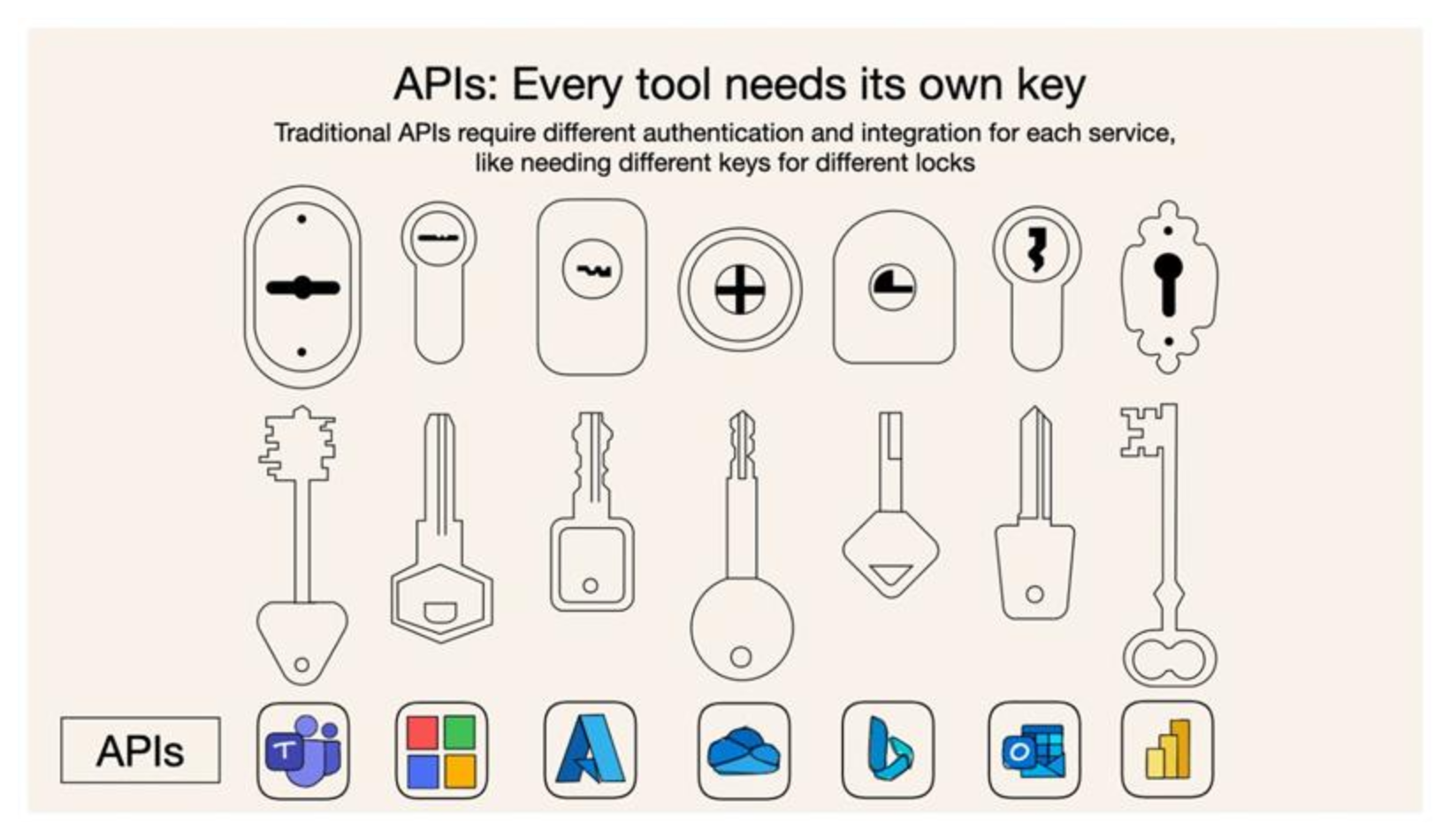

Why does this matter for security? Because MCP servers often expose sensitive operations, such as reading user data, executing commands, and accessing internal systems. If these servers lack proper authentication and authorization, anyone who can connect to them can access everything they expose.

Learn More

For a comprehensive introduction to MCP, see the OWASP MCP Azure Security Guide

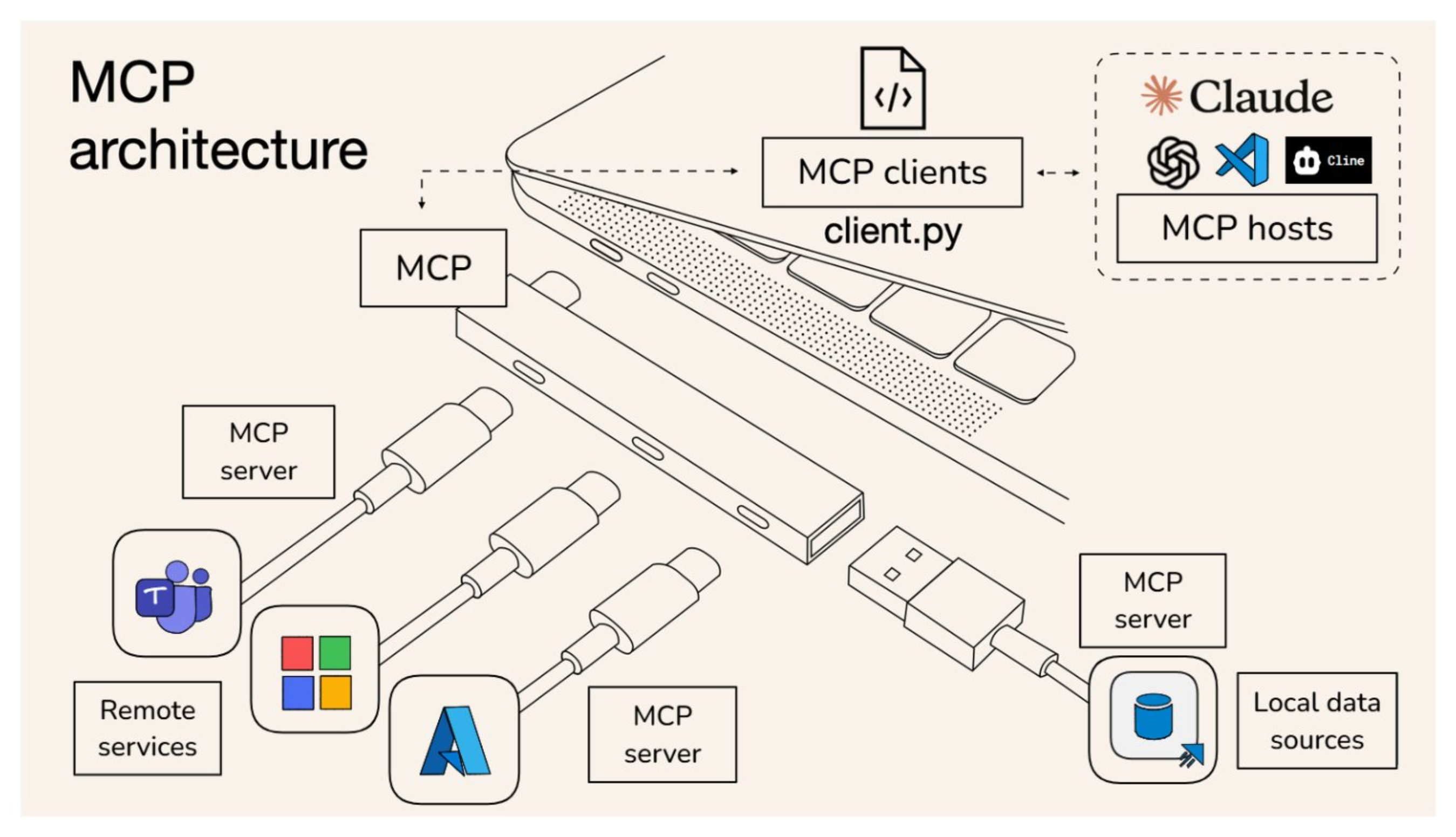

MCP Architecture¶

At its core, MCP connects AI applications (like VS Code or Claude Desktop) to data sources and tools (like databases, APIs, and file systems). The protocol sits in the middle, enabling bidirectional communication so AI applications can discover capabilities and invoke them on demand.

┌─────────────────────┐                              ┌─────────────────────┐
│                     │                              │                     │
│  AI Applications    │        ┌─────────────┐       │  Data Sources       │
│                     │        │             │       │  and Tools          │
│  • Claude Desktop   │◄──────►│     MCP     │◄─────►│                     │
│  • VS Code          │        │             │       │  • Databases        │
│  • Custom AI Agents │        │ Standardized│       │  • APIs             │
│  • ChatGPT          │        │  Protocol   │       │  • File Systems     │
│                     │        │             │       │  • Dev Tools        │
│                     │        └─────────────┘       │                     │
└─────────────────────┘                              └─────────────────────┘
     (Hosts/Clients)          Bidirectional                (MCP Servers)
                               Data Flow

In this workshop, you'll work with both sides of this architecture to understand where security risks emerge and how to address them.

Left side (AI Applications): VS Code, and other applications, act as the MCP client, connecting to MCP servers
Right side (MCP Servers): We'll run both vulnerable and secure servers that expose user data
The Risk: If the MCP server (right side) has no authentication, any client can connect and access all data

Prerequisites¶

Before starting Base Camp, ensure you have the required tools installed.

📋 Prerequisites Guide

See the Prerequisites page for detailed installation instructions and troubleshooting.

Quick checklist for Base Camp:

Python 3.10+
uv (Python package installer)
VS Code with GitHub Copilot (recommended for exploitation scenarios)

Verify your setup:

python --version && uv --version

Clone the Workshop Repository¶

git clone https://github.com/Azure-Samples/sherpa.git
cd sherpa

Setup Python Environment for Base Camp¶

# Navigate to Base Camp
cd camps/base-camp

# Install uv if not already installed
curl -LsSf https://astral.sh/uv/install.sh | sh

# One command setup (creates venv, installs all dependencies)
uv sync

Architecture Note

Each camp uses a single shared .venv for all components (vulnerable server, secure server, exploits). This simplifies setup for workshop participants.

The Ascent¶

Now it's time to begin your climb. Each waypoint below builds on the previous one, guiding you from vulnerability discovery to validated security fixes. You'll experience MCP security vulnerabilities firsthand, understand their impact, implement fixes, and verify your solutions work.

Click any waypoint below to expand its instructions and continue your ascent.

Waypoint 1: Run Vulnerable Server

Start the Vulnerable MCP Server¶

# Run the server
cd vulnerable-server
uv run --project .. python -m src.server

You should see:

🏔️  Base Camp - Vulnerable MCP Server (Streamable HTTP)
======================================================================
Server Name: Base Camp Vulnerable Server
Available Resources: 3 user records
Listening on: http://0.0.0.0:8000

⚠️  WARNING: This server has NO AUTHENTICATION!
   Anyone on the network can access ANY user's sensitive data via HTTP.

🚨 OWASP MCP07: Insufficient Authentication & Authorization
🚨 OWASP MCP01: Token Mismanagement & Secret Exposure
======================================================================

The server is now running and ready to be exploited. Proceed to Waypoint 2 to test the vulnerability.

Waypoint 2: Exploit the Vulnerability

Choose Your Exploitation Method¶

All three methods below demonstrate the same vulnerabilities: OWASP MCP07 (Insufficient Authentication & Authorization) and MCP01 (Token Mismanagement & Secret Exposure). Choose the approach that matches your learning style, or try multiple methods to see the vulnerability from different perspectives.

Choose Your Path

Quick & Comprehensive - Automated Test Script
Perfect for: Seeing all exploits at once, understanding the full scope quickly

Visual & Interactive - MCP Inspector
Perfect for: Hands-on exploration, understanding MCP protocol messages

AI-Powered Attack - VS Code with GitHub Copilot
Perfect for: Real-world AI agent scenario, seeing how AI assistants can exploit vulnerabilities

Method 1: Automated Test Script

Best for: Developers who want to see comprehensive test results quickly

Run the provided exploit script to demonstrate all vulnerabilities:

cd camps/base-camp/exploits
uv run --project .. python test_vulnerable.py

This automated script uses FastMCP Client to perform 6 comprehensive exploit tests:

Enumerate Tools - Connect without authentication and list available tools
Attempt Resource Enumeration - Try to list resources (server doesn't expose list, but resources ARE accessible)
EXPLOIT - Access user_001 (Alice Johnson) data without authentication
EXPLOIT - Access user_002 (Bob Smith) data without authorization
EXPLOIT - Access user_003 (Carol Williams) data without authorization
EXPLOIT - Read resources directly via user:// URIs

Security Impact

The script demonstrates:

No authentication required to connect
No authorization checks on tool calls
Complete data breach of all user accounts
Access to sensitive data (SSN, balance, email)
Key point: Even accessing user_001 is a breach because there's no identity verification!

Result: All 6 exploits succeed, confirming OWASP MCP07 and MCP01 vulnerabilities!

Method 2: MCP Inspector

Best for: Visual learners who want to explore interactively

Launch the MCP Inspector web interface:

cd camps/base-camp/exploits
./launch-inspector-http.sh

This opens a browser with an interactive MCP testing interface. Perfect for:

Visual exploration of resources
Interactive tool calling
Understanding MCP protocol messages
No code required!

Step-by-Step Exploitation¶

Set the server URL: In the MCP Inspector interface, enter http://127.0.0.1:8000/mcp (or http://localhost:8000/mcp)
Select transport type: Choose "Streamable HTTP" from the transport dropdown
Click "Connect" - Notice: No authentication required! ⚠️
Open Tools menu: Click "Tools" in the menu bar to see available tools
Call the tool: Select get_user_info and provide a user_id parameter

Test: Access User Data¶

Call the get_user_info tool with user_id: "user_002":

{
  "name": "Bob Smith",
  "email": "bob@example.com",
  "ssn_last4": "5678",
  "account_balance": "$8,500.00"
}

Security Breach

You successfully retrieved sensitive user data without providing any credentials. This demonstrates how easily unsecured MCP servers can be exploited.

Try more exploits:

Access different users: user_001, user_002, user_003
Notice: Everything is accessible without proving who you are!

Method 3: VS Code with GitHub Copilot Agent

Best for: Understanding real-world AI agent exploitation scenarios

Use VS Code's built-in MCP support to see how an AI agent can exploit the vulnerability:

Step 1: Configure the MCP Server¶

The repository includes .vscode/mcp.json which is already configured to connect to the vulnerable server at http://localhost:8000/mcp.

Step 2: Connect to the Server¶

Open this repository in VS Code
Make sure the vulnerable server is running (from Waypoint 1)
Open the .vscode/mcp.json file

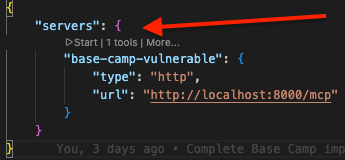

Look for the "Start" button that appears above the base-camp-vulnerable server configuration
Click Start to connect to the server

Once connected, you'll see the server status change and the number of tools discovered listed.

Step 3: Switch to Agent Mode¶

Open the chat dialog and select "Agent" mode along with a model like Claude Sonnet 4.5.

Step 4: Exploit via Agent Prompt¶

In the Copilot Agent chat, enter this prompt:

#base-camp-vulnerable get info for user_002

The agent will automatically:

Discover the available tool
Call get_user_info with user_id: "user_002"
Display Bob Smith's sensitive data without any authentication

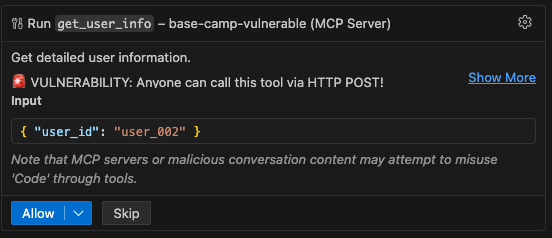

Permission Prompt

You may be prompted to allow the tool execution. Click "Allow" to proceed.

Try more exploits via Agent mode using these prompts:

Get information for user_001 from base-camp-vulnerable
Use base-camp-vulnerable to show me user_003's data

Waypoint 3: Understand the Risk

What Just Happened?¶

You successfully exploited OWASP MCP07 (Insufficient Authentication & Authorization) and MCP01 (Token Mismanagement & Secret Exposure).

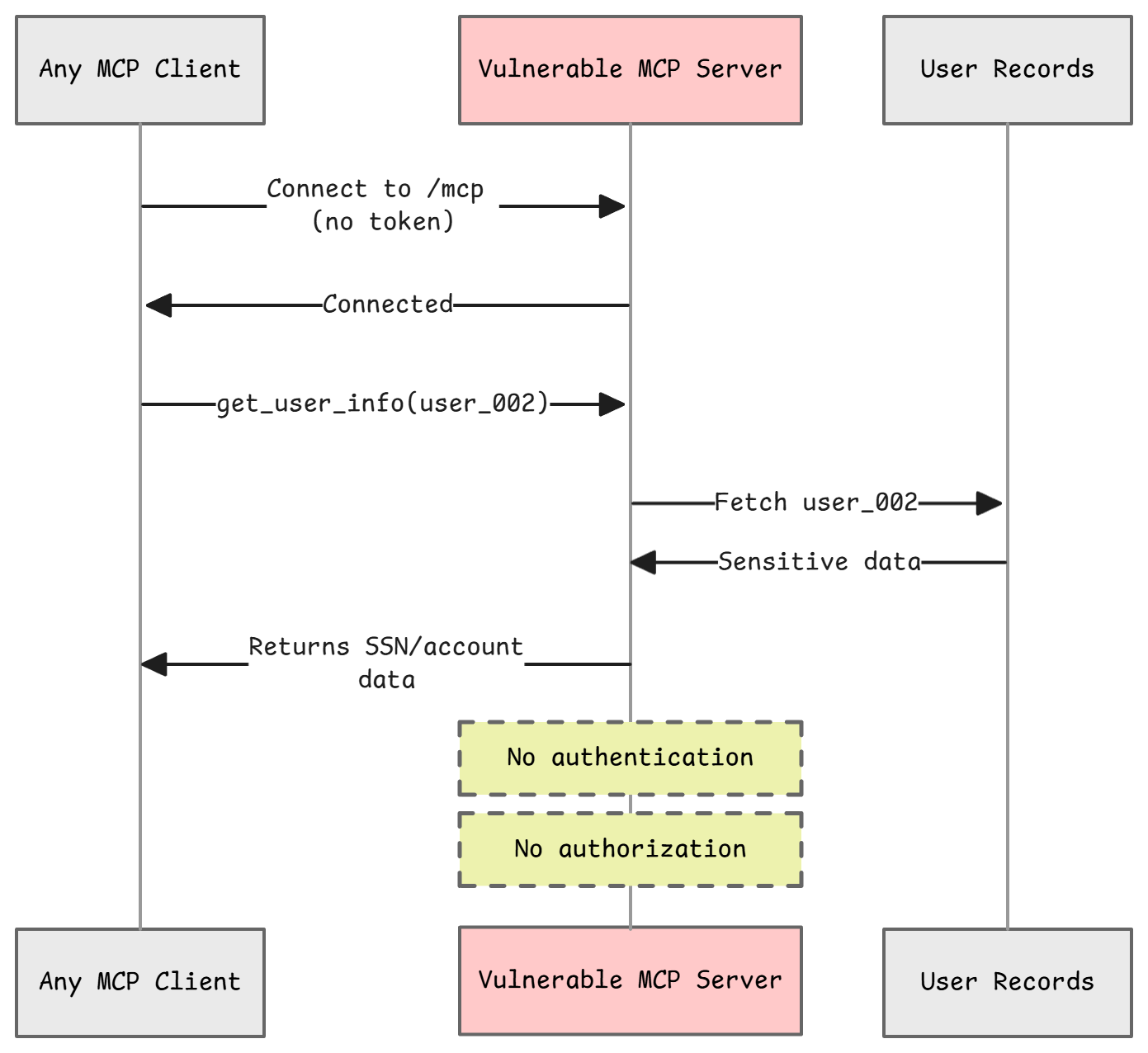

The Vulnerability

The MCP server has NO authentication mechanism
ANY client can connect and access ANY resource
There's no code checking WHO is making the request
Both the resource handler and tool are completely open
Any client that can reach the server can call these functions with any user_id and retrieve sensitive data

Real-World Impact¶

Impact Area	Consequence
Data Breach	Unauthorized access to sensitive user information
Compliance	GDPR, HIPAA, PCI-DSS violations
Reputation	Customer trust destroyed
Financial	Fines, legal fees, remediation costs

Code Review: Where's the Vulnerability?¶

Let's examine the vulnerable code to understand exactly what went wrong.

File: vulnerable-server/src/server.py

#VULNERABILITY: No authentication check!
@mcp.resource("user://{user_id}")
async def get_user_resource(user_id: str) -> str:
    """
    🚨 VULNERABILITY: No authentication check!
    Anyone on the network can access this HTTP endpoint
    and retrieve any user's sensitive data.
    """
    user = USERS.get(user_id)
    if not user:
        raise ValueError(f"User {user_id} not found")

    return f"""Name: {user['name']}
Email: {user['email']}
SSN: ***-**-{user['ssn_last4']}
Balance: ${user['balance']:,.2f}

⚠️  WARNING: This data was accessed without authentication via HTTP!"""

Waypoint 4: Implement Security

Switch to Secure Server¶

# Stop the vulnerable server (Ctrl+C)
# Navigate to secure server
cd ../secure-server

Configure Authentication Token¶

# Copy example environment file
cp .env.example .env

# The default token is: workshop_demo_token_12345
# You can customize it by editing .env if desired

Start the Secure Server¶

# From camps/base-camp/secure-server directory
uv run --project .. python -m src.server

You should see:

🏔️  Base Camp - Secure MCP Server (Streamable HTTP)
======================================================================
Server Name: Base Camp Secure Server
Available Resources: 3 user records
Listening on: http://0.0.0.0:8001

✅ AUTHENTICATION ENABLED
   Required token: workshop_demo_token_12345
   All requests must include valid Bearer token

✅ AUTHORIZATION ENABLED
   Users can only access their own data (user_001)
======================================================================

Test With MCP Inspector¶

Open MCP Inspector in a new terminal: npx @modelcontextprotocol/inspector
In the MCP Inspector web interface, change the server URL to http://localhost:8001/mcp
Click "Connect" - you should get an authentication error (401 Unauthorized)
Add the authentication header:
- Click to add a custom header
- Header Name: Authorization
- Header Value: Bearer workshop_demo_token_12345
- Important: Enable the toggle button to the left of the header!
Click "Connect" again - now it succeeds!

Test the Security

Use the Tools menu in MCP Inspector to test authorization:

Call get_user_info tool with user_id: user_001 - should work (your own data)
Call get_user_info tool with user_id: user_002 - should fail (403 Forbidden)
Call get_user_info tool with user_id: user_003 - should fail (403 Forbidden)

Waypoint 5: Validate the Fix

Automated Testing¶

Run the secure server test script:

cd camps/base-camp/exploits
uv run --project .. python test_secure.py

The test script uses FastMCP Client (fastmcp.client.Client) with BearerAuth to programmatically test the secure server.

The script validates:

Test 1: Connection WITH token succeeds (user_001 can access own data)
Test 2: Connection WITHOUT token fails (401 Unauthorized)
Test 3: Invalid token is rejected (401 Unauthorized)
Test 4: Authorization prevents accessing other user's data (user_002, user_003)
Test 5: Resource access requires authentication.

Expected output when all tests pass:

======================================================================
  📊 SECURITY TEST SUMMARY
======================================================================

Tests Passed: 5/5

🎉 SUCCESS! All security fixes validated!

🔒 Security Improvements Confirmed:
   ✅ Authentication - Bearer token required for all API access
   ✅ Authorization - Users can only access their own data
   ✅ Token Validation - Invalid tokens are rejected
   ✅ Unauthenticated Access - Blocked by default
   ✅ Resource Protection - Authentication required for all resources
======================================================================

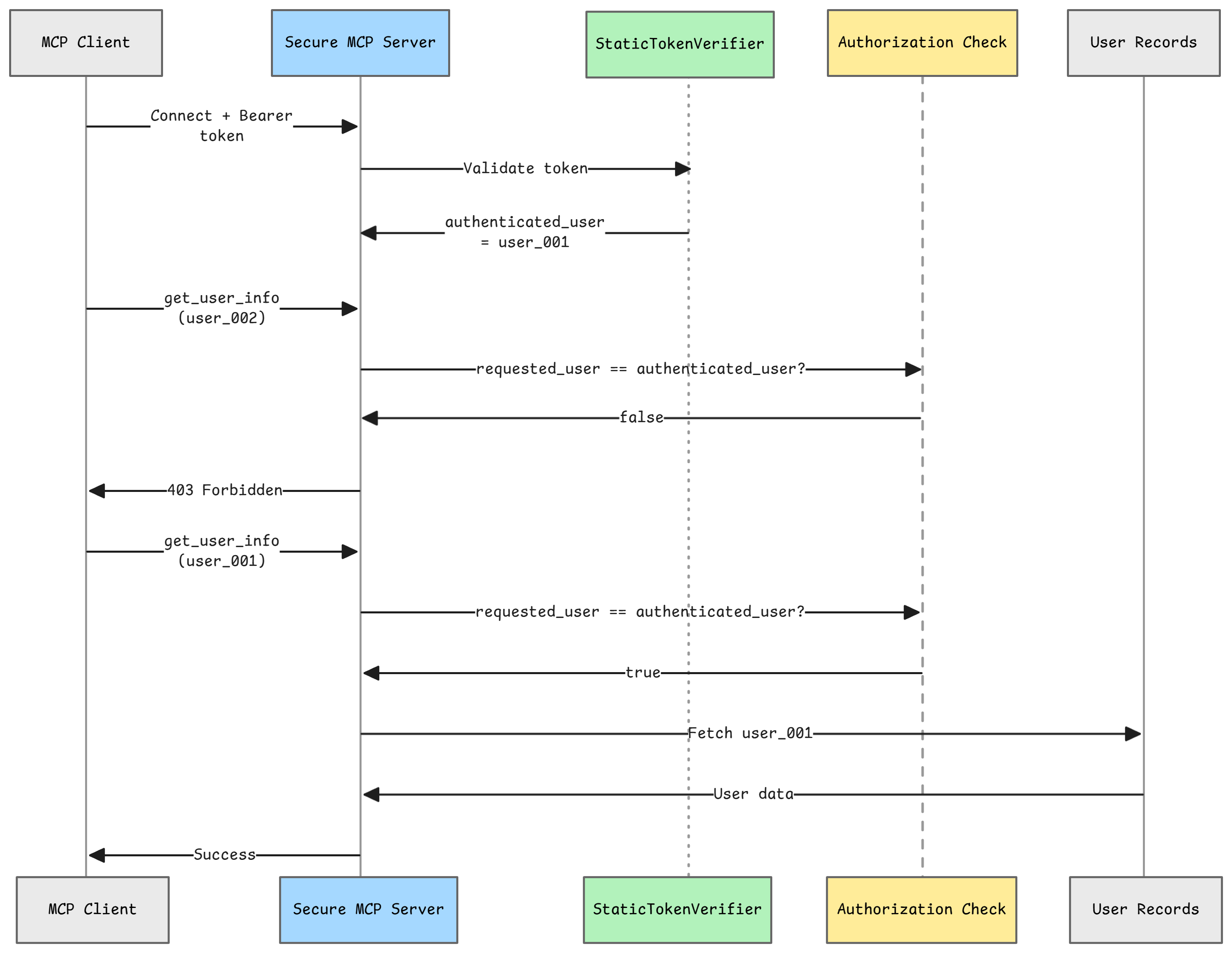

Code Review: How Was It Fixed?¶

Open secure-server/src/server.py and examine the key changes:

1. FastMCP Built-in Authentication¶

from fastmcp.auth import StaticTokenVerifier

# Define authentication using FastMCP's built-in verifier
auth = StaticTokenVerifier(
    tokens={
        REQUIRED_TOKEN: {
            "client_id": "user_001",
            "scopes": ["read", "write"]
        }
    }
)

# Create MCP server with authentication enabled
mcp = FastMCP("Base Camp Secure Server", auth=auth)

2. Authorization Helper Function¶

def check_authorization(requested_user_id: str, authenticated_user: str) -> bool:
    """Verify user can only access their own data"""
    return requested_user_id == authenticated_user

3. Secure Tool with Context¶

@mcp.tool()
async def get_user_info(ctx: Context, user_id: str) -> dict:
    """Get detailed user information - NOW WITH SECURITY!"""
    # Get authenticated user from context
    authenticated_user = get_authenticated_user(ctx)

    # ✅ Authorization check
    if not check_authorization(user_id, authenticated_user):
        raise PermissionError(
            f"Forbidden: You are authenticated as {authenticated_user} but "
            f"cannot access {user_id}'s data."
        )

    user = USERS.get(user_id)
    if not user:
        raise ValueError(f"User {user_id} not found")

    return {
        "user_id": user_id,
        "name": user["name"],
        "email": user["email"],
        "ssn_last4": user["ssn_last4"],
        "balance": user["balance"],
        "authenticated_as": authenticated_user,
        "authorization_verified": True
    }

4. Streamable HTTP Transport¶

# Export HTTP app with streamable HTTP transport
app = mcp.http_app(path="/mcp", transport="streamable-http")

Key Security Features

Token-based authentication - FastMCP's StaticTokenVerifier validates Bearer tokens
Context injection - Authenticated user info available in Context parameter
Authorization checks - Every tool validates user can access requested data
Streamable HTTP - Modern MCP transport protocol

⚠️ Important: This Is NOT Production-Ready!¶

While this fixes the Base Camp vulnerability, do not use this approach in production:

Demo Limitations

Simple bearer token - No expiration, no rotation
Token in environment variable - Can leak in logs/errors
Hardcoded user mapping - Token directly maps to user_001 for demo purposes
No token refresh - Can't revoke access easily
No audit logging - Can't track access
No rate limiting - Vulnerable to brute force

Why FastMCP's StaticTokenVerifier?

FastMCP provides built-in authentication for learning and prototyping. The StaticTokenVerifier is intentionally simple - it maps predefined tokens to user identities. This is perfect for understanding authentication concepts, but production systems need dynamic token validation (JWT), token rotation, and integration with identity providers.

What Makes It Production-Ready? → Camp 1!¶

In Camp 1: Identity & Access Management, you'll implement:

OAuth 2.1 with PKCE - Industry-standard authentication
Azure Entra ID - Enterprise identity provider
Azure Managed Identity - Passwordless authentication
Azure Key Vault - Secure secrets storage (no .env files!)
JWT tokens - With expiration, refresh, and validation
RBAC - Role-based access control for fine-grained permissions
Audit logging - Track every access for compliance

Summary & Key Takeaways¶

What You've Learned

Vulnerability Demonstrated: Unauthenticated MCP servers expose all data
OWASP Risk: MCP07 - Insufficient Authentication & Authorization
Fix Applied: Token-based authentication on every request
Pattern Learned: The "vulnerable → exploit → fix → validate" methodology

What's Next in Camp 1?¶

Base Camp used simple bearer tokens for demonstration. Camp 1: Identity & Access Management will upgrade to production-grade security:

OAuth 2.1 with PKCE (S256 method)
Azure Managed Identity for passwordless authentication
Azure Key Vault for secrets management
RBAC for least-privilege access control

Then Camp 2: Gateway & Network Security will add centralized API/MCP Gateway protection with Azure API Management.

Additional Resources¶

Learn More

Source Code: All code is available in the GitHub repository

OWASP Guide References:

Ready to continue the ascent? Head to Camp 1: Identity & Access Management →

Base Camp complete! You've learned the fundamentals. Now let's climb higher. 🏔️
