6.7 Create Graph Database

Hosting graph databases in Azure Database for PostgreSQL using the Apache AGE extension offers a powerful way to analyze relationships within your data. AGE combines graph and relational data seamlessly, leveraging the openCypher query language for efficient graph processing. This integration brings PostgreSQL's scalability, performance, and security to the table while enabling advanced data analysis and management. When incorporated into a copilot, this setup empowers you to evaluate vendor performance of SOW deliverables through invoice validation, ensuring your data-driven decisions are robust and insightful.

Once you have created your graph database, it will be incorporated into the Woodgrove Bank API as an extra tool available to the copilot, allowing you to improve RAG accuracy when retrieving relevant data. By using another function call, the copilot will be able to execute cypher queries against the graph database hosted in Azure Database for PostgreSQL using AGE while maintaining the existing capabilities of querying data in Postgres.

Woodgrove Graph

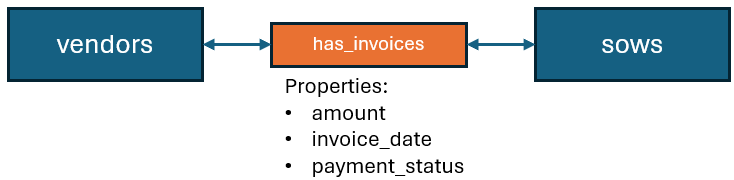

Graph databases allow you to model complex relationships between data using nodes and edges, making it easier to represent and query these relationships. You will build a simple graph using the data you extracted from the Woodgrove Bank database. You will define vendors and sows as nodes in your graph and use invoices as the edge between them. Edges in graph databases define a one-to-one relationship between two entities, defined as nodes. The diagram below provides a high-level representation of the graph database.

Edges must include a mapping of related entities through ID mapping and can also include properties, which allow the relationship to be filtered at query time.

Create Graph Database with AGEFreighter

AGEFreighter is a Python library designed to simplify the process of creating and loading graph databases in Azure Database for PostgreSQL, allowing data to be ingested from various sources, including CSV file, Azure Cosmos DB, Neo4j, and Azure Database for PostgreSQL.

Review code

The solution accelerator includes the graph_loader.py file in the src/api/app folder, which allows you to quickly run a Python script to create a graph database and populate it with data from CSV files.

The graph loader is implemented in the src/api/app/graph_loader.py file. Open it now in Visual Studio Code and explore the code in sections. You can also expand the section below to see the code inline and review explanations for the code.

Graph Loader code

import os
from agefreighter import Factory
from dotenv import load_dotenv
from azure.identity import DefaultAzureCredential
from azure.storage.blob.aio import BlobServiceClient

async def main():
    """Load data into Azure Database for PostgreSQL Graph Database."""
    # Load environment variables from the .env file
    load_dotenv()
    print("Loading environment variables...")

    # Get environment variables
    server = os.getenv("POSTGRESQL_SERVER_NAME")
    database = 'contracts'
    username = os.getenv("ENTRA_ID_USERNAME")
    account_name = os.getenv("STORAGE_ACCOUNT_NAME")

    # Create an AGEFreigher factory instance to load data from multiple CSV files.
    print("Creating AGEFreighter factory instance...")
    factory = Factory.create_instance('MultiCSVFreighter')

    # Connect to the PostgreSQL database.
    print("Connecting to the PostgreSQL database...")
    await factory.connect(
        dsn=get_connection_string(server, database, username),
        max_connections=64
    )

    local_data_dir = 'graph_data/'

    # Download CSV data files from Azure Blob Storage
    print("Downloading CSV files from Azure Blob Storage...")
    await download_csvs(account_name, local_data_dir)

    # Load data into the graph database
    print("Loading data into the graph database...")
    await factory.load(
        graph_name='vendor_graph',
        vertex_csv_paths = [
            f'{local_data_dir}vendors.csv',
            f'{local_data_dir}sows.csv'
        ],
        vertex_labels = ['vendor', 'sow'],
        edge_csv_paths = [f'{local_data_dir}has_invoices.csv'],
        edge_types = ["has_invoices"],
        use_copy=True,
        drop_graph=True,
        create_graph=True,
        progress=True
    )

    print("Graph data loaded successfully!")

def get_connection_string(server_name: str, database_name: str, username: str):
    """Get the connection string for the PostgreSQL database."""

    # Get a token for the Azure Database for PostgreSQL server
    credential = DefaultAzureCredential()
    token = credential.get_token("https://ossrdbms-aad.database.windows.net")
    port = 5432

    conn_str = "host={} port={} dbname={} user={} password={}".format(
        server_name, port, database_name, username, token.token
    )
    return conn_str

async def download_csvs(account_name:str, local_data_directory: str):
    """Download CSV files from Azure Blob Storage."""

    # Create connection to the blob storage account
    account_blob_endpoint = f"https://{account_name}.blob.core.windows.net/"
    # Connect to the blob service client using Entra ID authentication
    client = BlobServiceClient(account_url=account_blob_endpoint, credential=DefaultAzureCredential())

    # List the blobs in the graph container with a CSV extension
    async with client:
        async for blob in client.get_container_client('graph').list_blobs():
            if blob.name.endswith('.csv'):
                # Download the CSV file to a local directory
                await download_csv(client, blob.name, local_data_directory)

async def download_csv(client: BlobServiceClient, blob_path: str, local_data_dir: str):
    """Download a CSV file from Azure Blob Storage."""
    # Get the blob
    blob_client = client.get_blob_client(container='graph', blob=blob_path)

    async with blob_client:
        # Download the CSV file
        if await blob_client.exists():
            # create a local directory if it does not exist
            if not os.path.exists(local_data_dir):
                os.makedirs(local_data_dir)

            with open(f'{local_data_dir}{blob_path.split('/')[-1]}', 'wb') as file:
                stream = await blob_client.download_blob()
                result = await stream.readall()
                # Save the CSV file to a local directory
                file.write(result)

if __name__ == "__main__":
    import asyncio
    import sys

    if sys.platform == "win32":
        asyncio.set_event_loop_policy(asyncio.WindowsSelectorEventLoopPolicy())

    asyncio.run(main())

1. Import libraries (lines 1-5): Required classes and functions are imported from various libraries.

2. Define main function (line 7): The main function is the entry point of the graph loader. This function serves as the orchestrator for executing the code within the file.

3. Load environment variables (lines 10-17): The load_dotenv() method from the dotenv Python library allows variables from the .env file within the API project to be loaded as environment variables in the project. Note the names of the variables here, as you will be adding those to your .env file in the next step.

4. Create an AGEFreighter factory (line 21): The entry point for the agefreighter package in the factory class. This method creates an instance of the library using the type specified. You are loading your graph using multiple CSV files, so the MultiCSVFreighter class type is indicated.

5. Connect to PostgreSQL (lines 25-28): The connect method of the factory opens a connection to your Azure Database for PostgreSQL flexible server.

   1. The get_connection_string() function uses values from your environment variables to define the connection string the factory will use to connect to your database.
   2. The get_connection_string() function is defined on lines 55-66.

6. Download CSV files from blob storage (line 34): The CSV files you created in the previous task are downloaded from blob storage and written into a local folder, where the graph loader can easily access them.

   1. The download_csvs() function is defined on lines 68-81. This function creates a BlobServiceClient instance, which is used to retrieve the blobs in your storage account's graph container.
   2. For each blob with the extension of .csv, the download_csv function defined on lines 83-99 is used to retrieve the blob's contents and write them into a local file.

7. Create and load the graph database (lines 38-51): The load method of the factory does the following:

   1. Creates a graph named vendor_graph.
   2. Defines vertex (node) data and labels and inserts the nodes into the graph.
   3. Specifies edges using labels and inserts them to establish the relationships between the nodes.

8. Define the main guard (lines 101-108): The main guard defines how the graph_loader is executed when called directly. This code block lets you run the script from a command line or VS Code debugging session.

Update .env file

The graph_loader.py file references environment variables to retrieve information about your Azure Database for PostgreSQL flexible server instance, your Entra ID username, and the storage account from which to pull CSV files. Before executing the graph loader script, you must update your project's .env file with these values. The .env file can be found in the src\api\app folder of the repo.

1. In VS Code, navigate to the src\api\app folder in the Explorer panel.

2. Open the .env file and add the following lines:

   Update your .env file!

   ENTRA_ID_USERNAME="{YOUR_ENTRA_ID_USERNAME}"
   POSTGRESQL_SERVER_NAME="{YOUR_POSTGRESQL_SERVER_NAME}"
   STORAGE_ACCOUNT_NAME="{YOUR_STORAGE_ACCOUNT_NAME}"


   Follow these steps to retrieve the necessary values

   1. Replace the {YOUR_ENTRA_ID_USERNAME} token in the ENTRA_ID_USERNAME variable's value with your Microsoft Entra ID, which should be the email address of the account you are using for this solution accelerator.

   2. Replace the {YOUR_POSTGRESQL_SERVER_NAME} token with the name of your PostgreSQL server. To get your server name:

   3. Navigate to your Azure Database for PostgreSQL flexible server resource in the Azure portal.

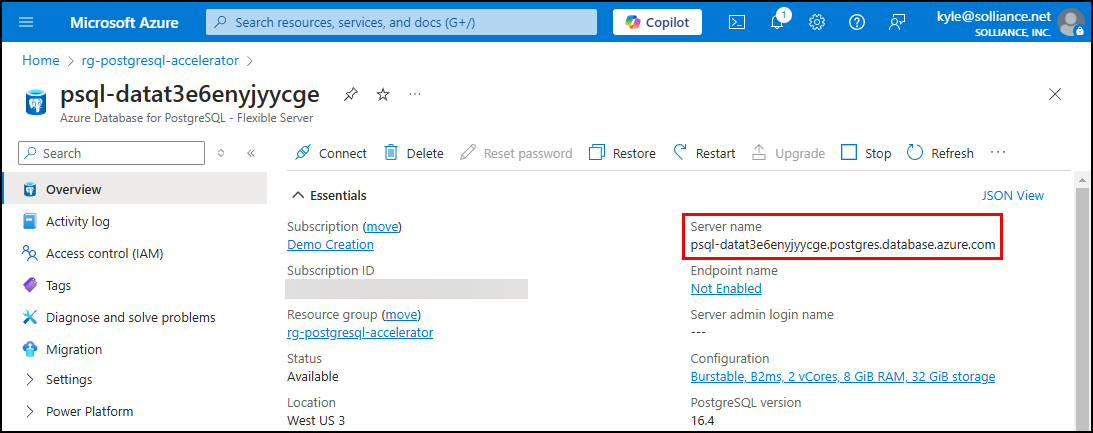

   4. In the Essentials panel of the PostgreSQL flexible server's Overview page, copy the Server name value and paste it into your .env file as the POSTGRESQL_SERVER_NAME value.



   5. Replace the {YOUR_STORAGE_ACCOUNT_NAME} token with the name of your storage account. To retrieve your storage account name:

   6. In the Azure portal, navigate to the Storage account resource in your resource group.

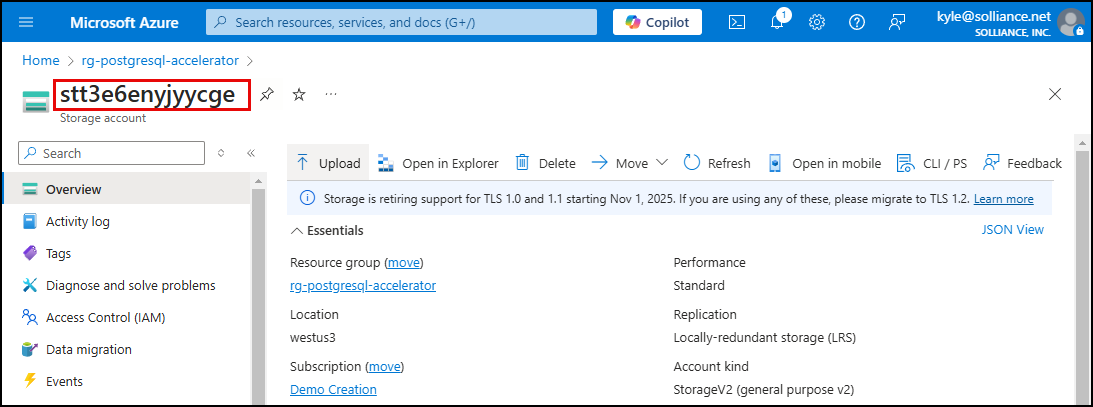

   7. On the Storage account page, copy the storage account name and paste it into your .env file as the STORAGE_ACCOUNT_NAME value.



3. Save the .env file.

Load the graph database

You will use a VS Code debugging session to locally execute the graph_loader.py script. Follow the steps below to start a Graph Loader debug session in VS Code.

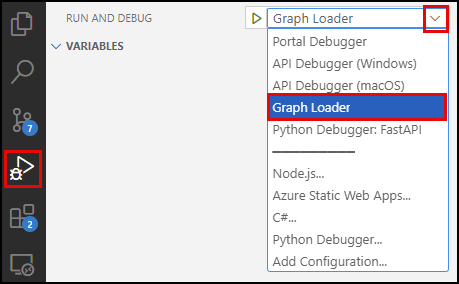

1. In Visual Studio Code Run and Debug panel, select the Graph Loader option from the debug configurations dropdown list.



2. Select the Start Debugging button (or press F5 on your keyboard).

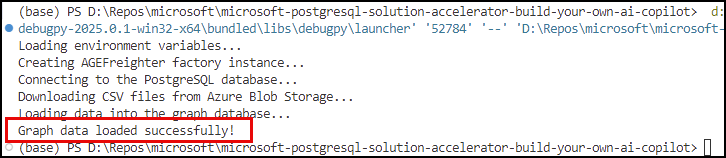

3. Wait for the graph loader to finish running, indicated by the Graph data loaded successfully! message in the terminal output.



Verify data load

You will execute openCypher queries using pgAdmin to verify the data load and explore relationships in your graph database.

1. Return to pgAdmin and ensure it is connected to your PostgreSQL database.

2. In the pgAdmin Object Explorer, expand databases under your PostgreSQL server.

3. Right-click the contracts database and select Query Tool from the context menu.

4. Before you can run cypher queries, you must set the ag_catalog schema in your path:

   Execute the following SQL commands in pgAdmin!

   SET search_path = ag_catalog, "$user", public;


5. Now, run the following cypher query to view vendors with open invoices, the details of those invoices, and verify your graph database was loaded correctly:

   Execute the following SQL commands in pgAdmin!

   -- View vendors and SOWs, along with invoice details from edge properties
   SELECT * FROM ag_catalog.cypher('vendor_graph', $$
   MATCH (v:vendor)-[rel:has_invoices]->(s:sow)
   RETURN v.id AS vendor_id, v.name AS vendor_name, s.id AS sow_id, s.number AS sow_number, rel.payment_status AS payment_status, rel.amount AS invoice_amount
   $$) as graph_query(vendor_id BIGINT, vendor_name TEXT, sow_id BIGINT, sow_number TEXT, payment_status TEXT, invoice_amount FLOAT);


Congratulations! You have successfully loaded your graph database with data from PostgreSQL.
